Description

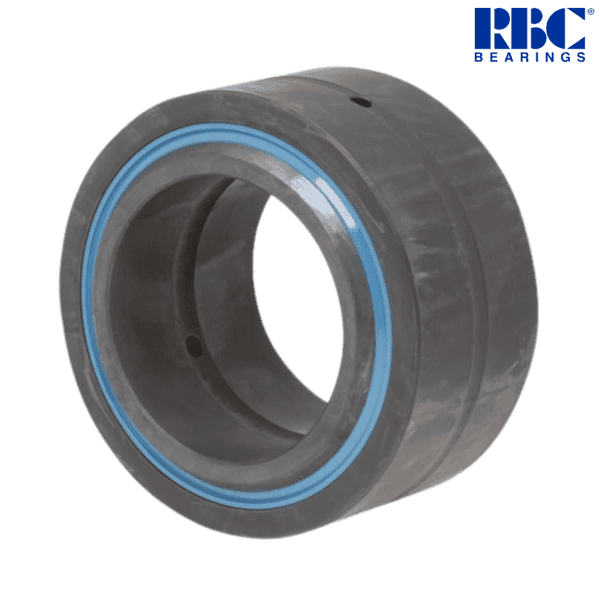

Brand - RBC
Item Number - GE 260 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 260 mm
Outer Diameter (D) - 370 mm
Width (B) - 150 mm
Dimension (C) - 110 mm
Dimension (dk) - 325 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm

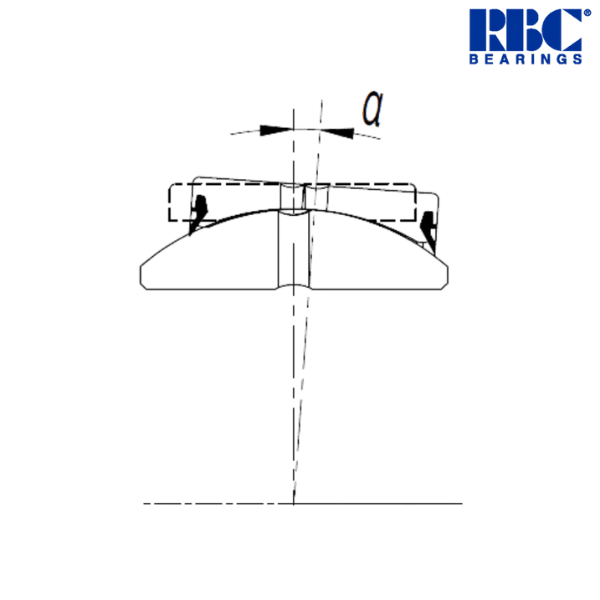

Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 3030 kN
Basic Static Load Rating (C0) - 15190 kN
Weight - 51.540 kg
Spherical Plain Bearing without Seals - GE 260 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 260 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 260 mm
Outer Diameter (D) - 370 mm
Width (B) - 150 mm
Dimension (C) - 110 mm
Dimension (dk) - 325 mm
Minimum Dimension (R1) - 1.1 mm
Minimum Dimension (R2) - 1.1 mm
Dimension (a) - 7 mm
Basic Dynamic Load Rating (C) - 3030 kN
Basic Static Load Rating (C0) - 15190 kN
Weight - 51.540 kg
Spherical Plain Bearing without Seals - GE 260 MB
♦ ♦ Images are for representation purposes only
