Description

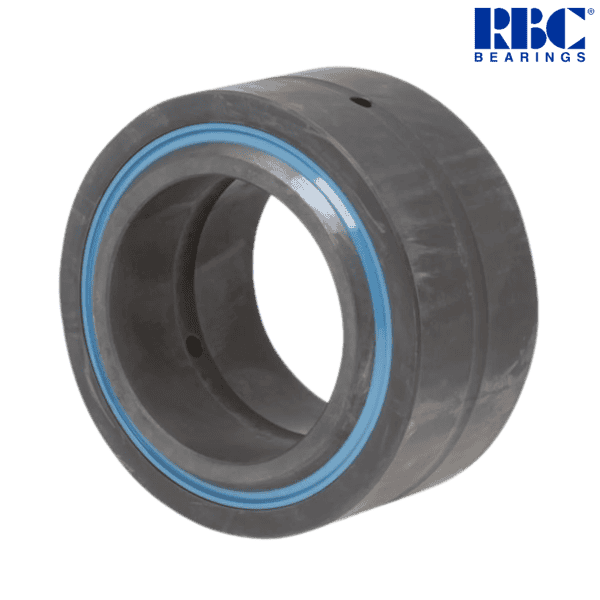

Brand - RBC
Item Number - GE 60 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 60 mm
Outer Diameter (D) - 90 mm
Width (B) - 44 mm
Dimension (C) - 36 mm
Dimension (dk) - 80 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm

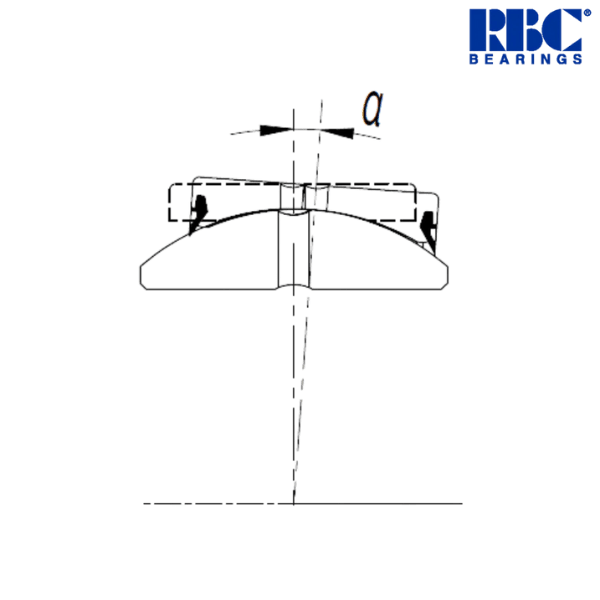

Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 245 kN
Basic Static Load Rating (C0) - 1220 kN
Weight - 1.000 kg
Spherical Plain Bearing without Seals - GE 60 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 60 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 60 mm
Outer Diameter (D) - 90 mm
Width (B) - 44 mm
Dimension (C) - 36 mm
Dimension (dk) - 80 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 245 kN
Basic Static Load Rating (C0) - 1220 kN
Weight - 1.000 kg
Spherical Plain Bearing without Seals - GE 60 MB
♦ ♦ Images are for representation purposes only
