Description
Brand - RBC

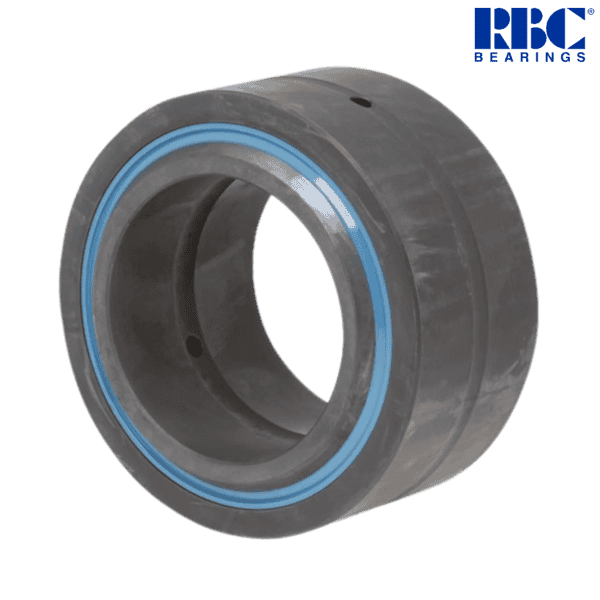

Item Number - GE 70 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 70 mm
Outer Diameter (D) - 105 mm
Width (B) - 49 mm
Dimension (C) - 40 mm
Dimension (dk) - 92 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm

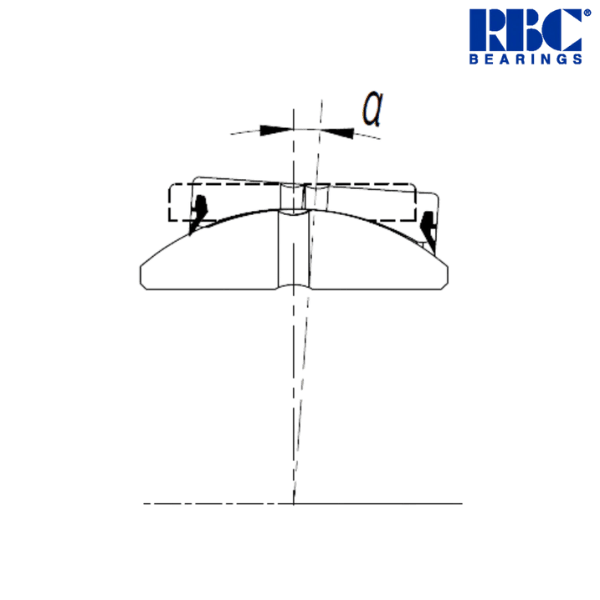

Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 315 kN
Basic Static Load Rating (C0) - 1560 kN
Weight - 1.500 kg
Spherical Plain Bearing without Seals - GE 70 MB
♦ ♦ Images are for representation purposes only
Item Number - GE 70 MB-2RS RBC
Category - Industrial Steel/Steel Spherical Plain Bearing
Sealing - Rubber Seal on Both Sides
Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (d) - 70 mm
Outer Diameter (D) - 105 mm
Width (B) - 49 mm
Dimension (C) - 40 mm
Dimension (dk) - 92 mm
Minimum Dimension (R1) - 1 mm
Minimum Dimension (R2) - 1 mm
Dimension (a) - 6 mm
Basic Dynamic Load Rating (C) - 315 kN
Basic Static Load Rating (C0) - 1560 kN
Weight - 1.500 kg
Spherical Plain Bearing without Seals - GE 70 MB
♦ ♦ Images are for representation purposes only
