Description
Brand - RBC
Item Number - GE2209LDLPTS RBC

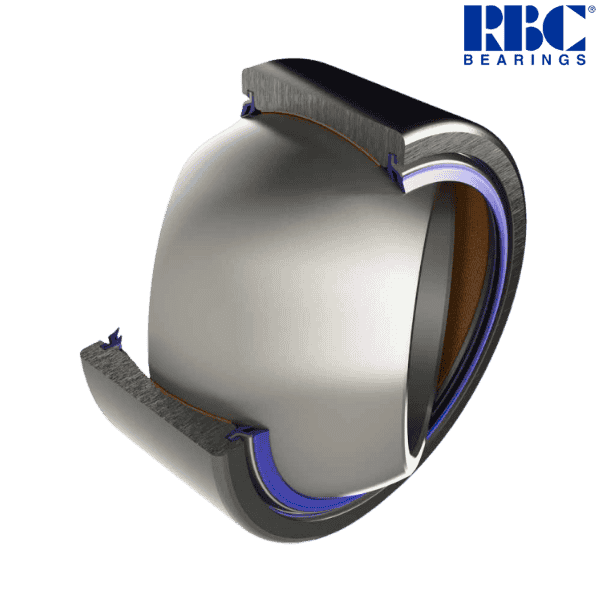

Category - Duralube Maintenance Free Spherical Plain Bearings

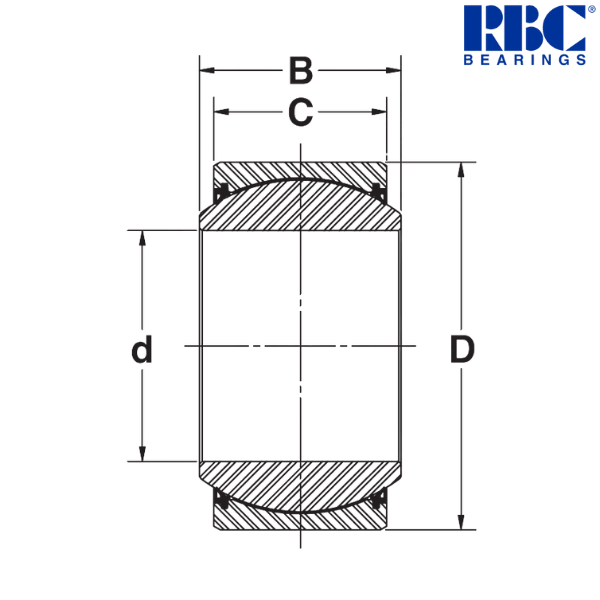

Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter (d) - 220 mm
Outer Diameter (D) - 320 mm
Width of Inner Ring (B) - 135 mm
Width of Outer Ring (B) - 100 mm
Static Radial Load - 12298 kN
Static Thrust Load - 1689 kN
Dynamic Radial Load - 6893 kN
Other salient points to be noted :
• DLP is RBC’s DuraLube™ II Plus Liner System.
• Ultimate static and impact loads should not exceed 150% of catalogue ratings.
♦ ♦ Images are for representation purposes only
Item Number - GE2209LDLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings
Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter (d) - 220 mm
Outer Diameter (D) - 320 mm
Width of Inner Ring (B) - 135 mm
Width of Outer Ring (B) - 100 mm
Static Radial Load - 12298 kN
Static Thrust Load - 1689 kN
Dynamic Radial Load - 6893 kN
Other salient points to be noted :
• DLP is RBC’s DuraLube™ II Plus Liner System.
• Ultimate static and impact loads should not exceed 150% of catalogue ratings.
♦ ♦ Images are for representation purposes only
