Description
Brand - RBC
Item Number - GE70DLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings

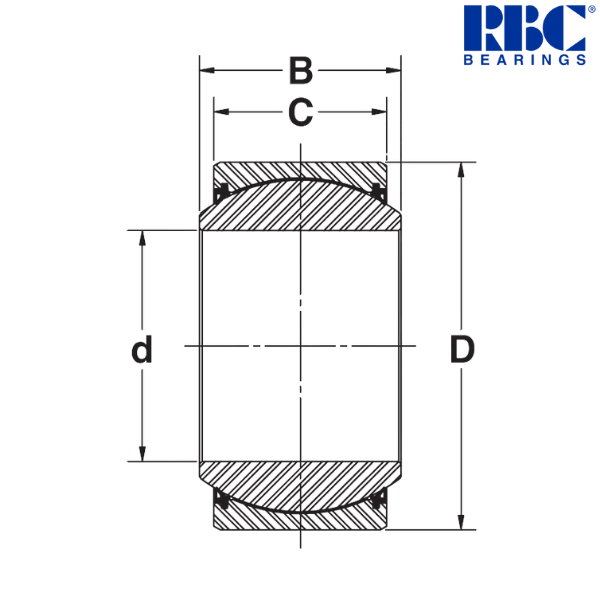

Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 105 mm
Width of Inner Ring (B) - 49 mm
Width of Outer Ring (B) - 40 mm
Static Radial Load - 1617 kN
Static Thrust Load - 270 kN
Dynamic Radial Load - 906 kN
Other salient points to be noted :

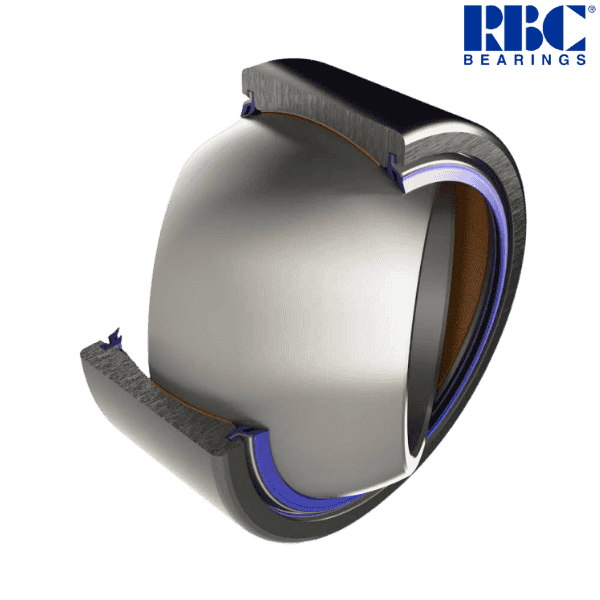

• DLP is RBC’s DuraLube™ II Plus Liner System.
• Ultimate static and impact loads should not exceed 150% of catalogue ratings.
♦ ♦ Images are for representation purposes only
Item Number - GE70DLPTS RBC
Category - Duralube Maintenance Free Spherical Plain Bearings
Principal Dimensions & Load Ratings (Imperial) :
Inner Diameter (d) - 70 mm
Outer Diameter (D) - 105 mm
Width of Inner Ring (B) - 49 mm
Width of Outer Ring (B) - 40 mm
Static Radial Load - 1617 kN
Static Thrust Load - 270 kN
Dynamic Radial Load - 906 kN
Other salient points to be noted :
• DLP is RBC’s DuraLube™ II Plus Liner System.
• Ultimate static and impact loads should not exceed 150% of catalogue ratings.
♦ ♦ Images are for representation purposes only
