GF042CP0 RBC

Brand - RBC
Item Number - GF042CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

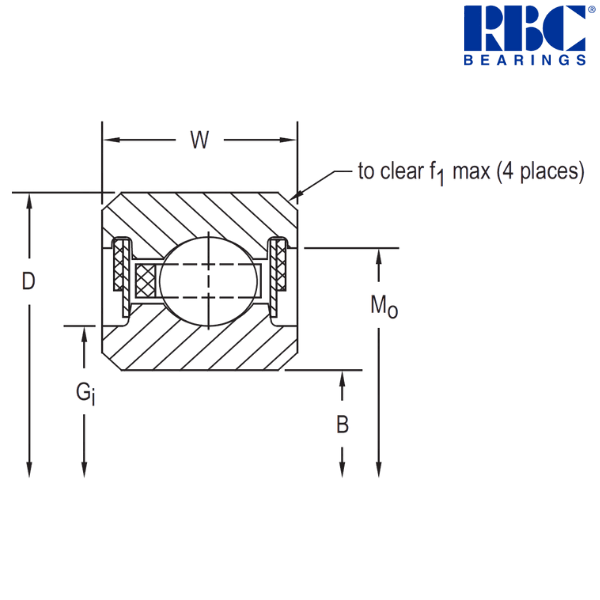

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.25 inch
Outside Diameter (D) - 5.75 inch
Width (W) - 0.75 inch
Recess Diameter (Gi) - 4.625 inch
Groove Diameter (Mo) - 5.281 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 20 pcs.
Approximate Weight - 2 lbs
Radial Static Load - 5640 lbf
Radial Dynamic Load - 4070 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 107.95 mm
Outside Diameter (D) - 146.05 mm
Width (W) - 19.05 mm
Recess Diameter (Gi) - 117.48 mm
Groove Diameter (Mo) - 134.14 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 0.907 kg
Radial Static Load - 25090 N
Radial Dynamic Load - 18100 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
F - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

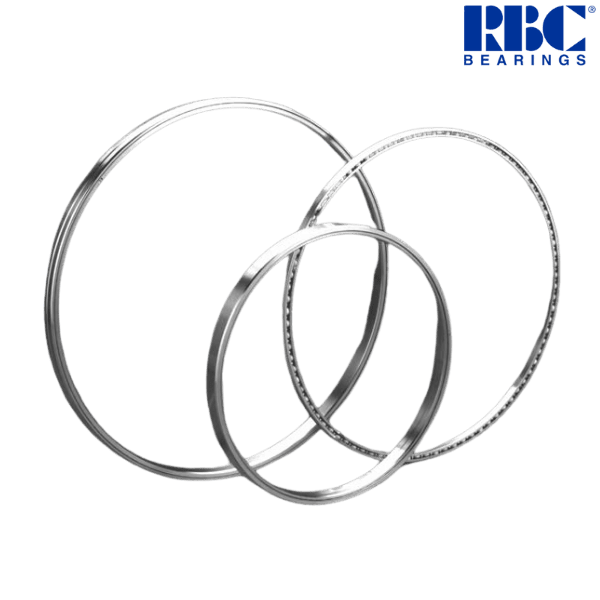

♦ ♦ Images are for representation purposes only
