GF075CP0 RBC

Brand - RBC
Item Number - GF075CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

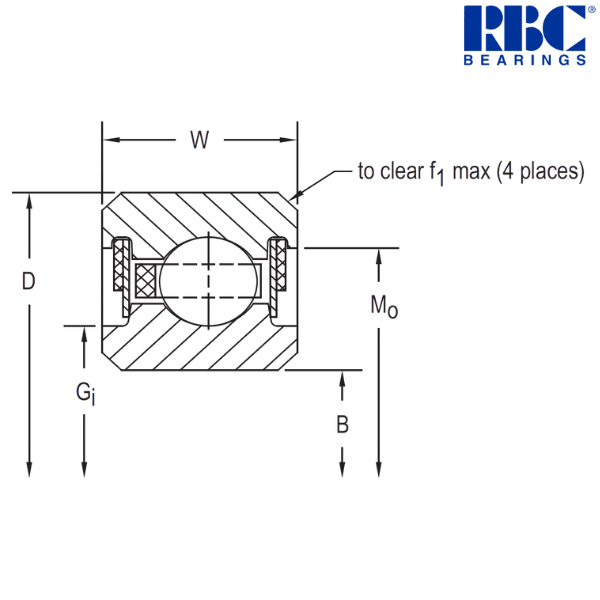

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 9 inch
Width (W) - 0.75 inch
Recess Diameter (Gi) - 7.875 inch
Groove Diameter (Mo) - 8.531 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 33 pcs.
Approximate Weight - 3.4 lbs
Radial Static Load - 9310 lbf
Radial Dynamic Load - 5040 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 228.6 mm
Width (W) - 19.05 mm
Recess Diameter (Gi) - 200.03 mm
Groove Diameter (Mo) - 216.69 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 1.542 kg
Radial Static Load - 41410 N
Radial Dynamic Load - 22420 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
F - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

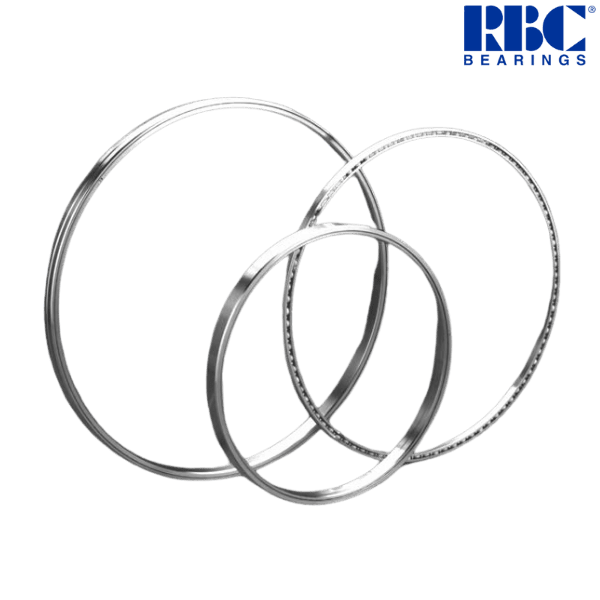

♦ ♦ Images are for representation purposes only
