GF075XP0 RBC

Brand - RBC
Item Number - GF075XP0*RBC

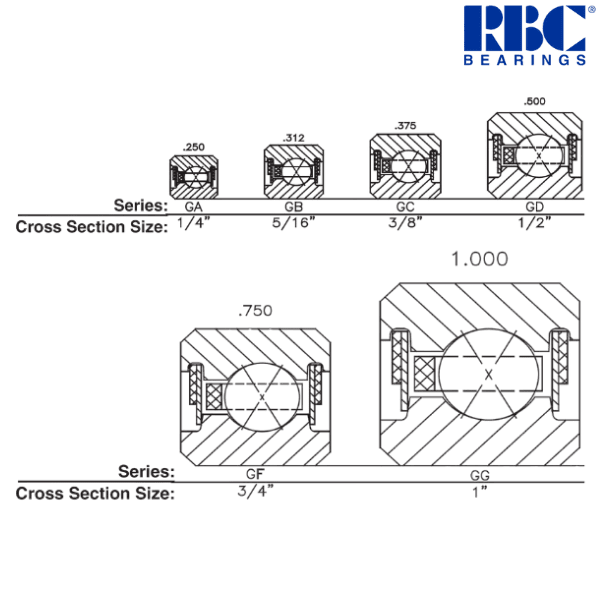

Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

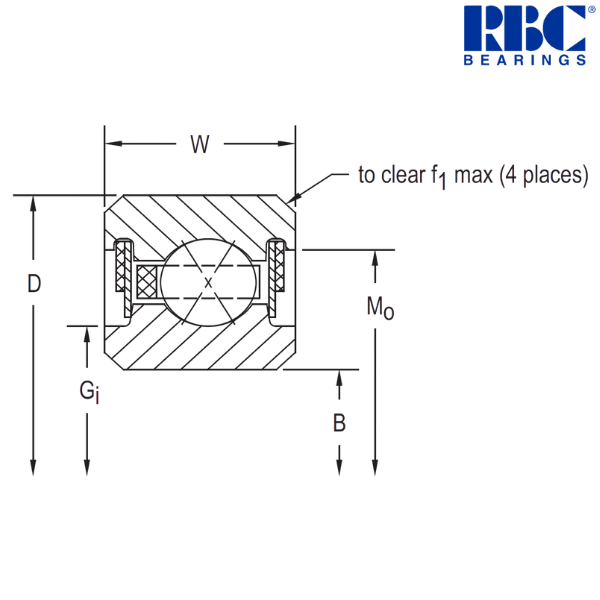

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 9 inch
Width (W) - 0.75 inch
Recess Diameter (Gi) - 7.875 inch
Groove Diameter (Mo) - 8.531 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 33 pcs.
Approximate Weight - 3.4 lbs
Radial Static Load - 9310 lbf
Radial Dynamic Load - 6323 lbf
Thrust Static Load - 23280 lbf
Thrust Dynamic Load - 10930 lbf
Moment Static Load - 38410 lbf
Moment Dynamic Load - 19568 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 228.6 mm
Width (W) - 19.05 mm
Recess Diameter (Gi) - 200.03 mm
Groove Diameter (Mo) - 216.69 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 1.542 kg
Radial Static Load - 41410 N
Radial Dynamic Load - 28130 N
Thrust Static Load - 103550 N
Thrust Dynamic Load - 48620 N
Moment Static Load - 4340 Nm
Moment Dynamic Load - 2210 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
F - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.
