GG042CP0 RBC

Brand - RBC
Item Number - GG042CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

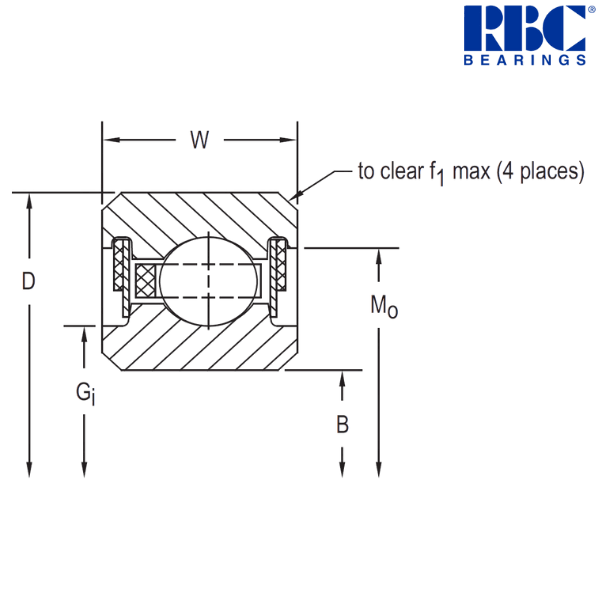

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.25 inch
Outside Diameter (D) - 6.25 inch
Width (W) - 1 inch
Recess Diameter (Gi) - 4.75 inch
Groove Diameter (Mo) - 5.59 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 15 pcs.
Approximate Weight - 3.8 lbs
Radial Static Load - 8210 lbf
Radial Dynamic Load - 6700 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 107.95 mm
Outside Diameter (D) - 158.75 mm
Width (W) - 25.4 mm
Recess Diameter (Gi) - 120.65 mm
Groove Diameter (Mo) - 141.99 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 1.724 kg
Radial Static Load - 36520 N
Radial Dynamic Load - 29800 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
G - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
