GG045CP0 RBC

Brand - RBC
Item Number - GG045CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

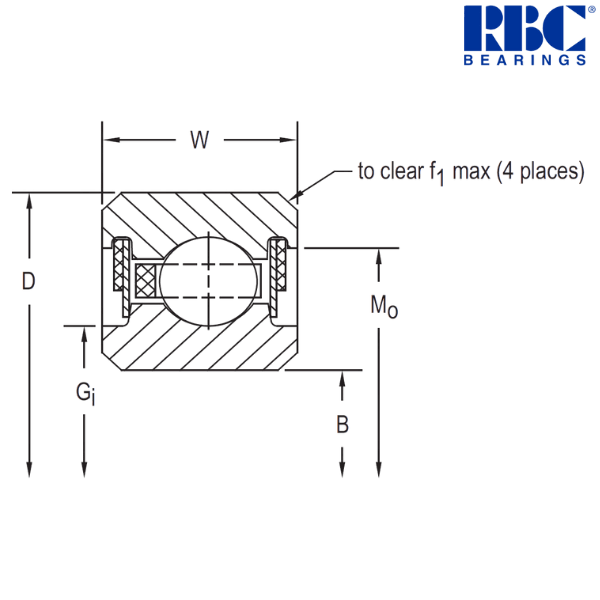

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.5 inch
Outside Diameter (D) - 6.5 inch
Width (W) - 1 inch
Recess Diameter (Gi) - 5 inch
Groove Diameter (Mo) - 5.875 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 16 pcs.
Approximate Weight - 4 lbs
Radial Static Load - 8760 lbf
Radial Dynamic Load - 7000 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 114.3 mm
Outside Diameter (D) - 165.1 mm
Width (W) - 25.4 mm
Recess Diameter (Gi) - 127 mm
Groove Diameter (Mo) - 149.23 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 1.814 kg
Radial Static Load - 38970 N
Radial Dynamic Load - 31140 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
G - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
