GG075XP0 RBC

Brand - RBC
Item Number - GG075XP0*RBC

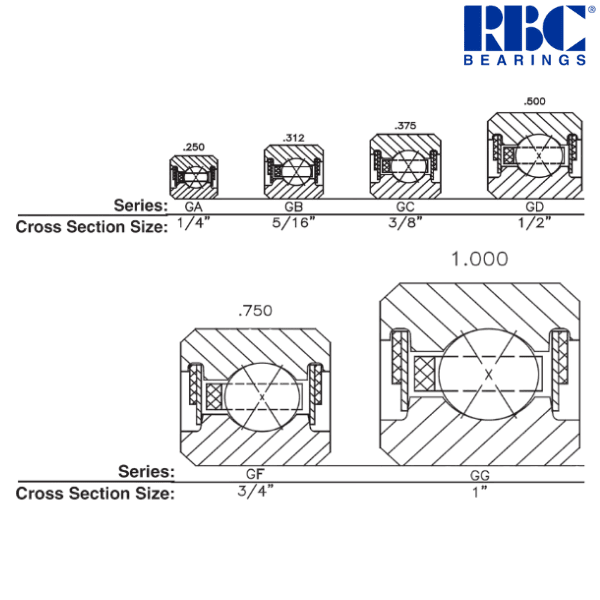

Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

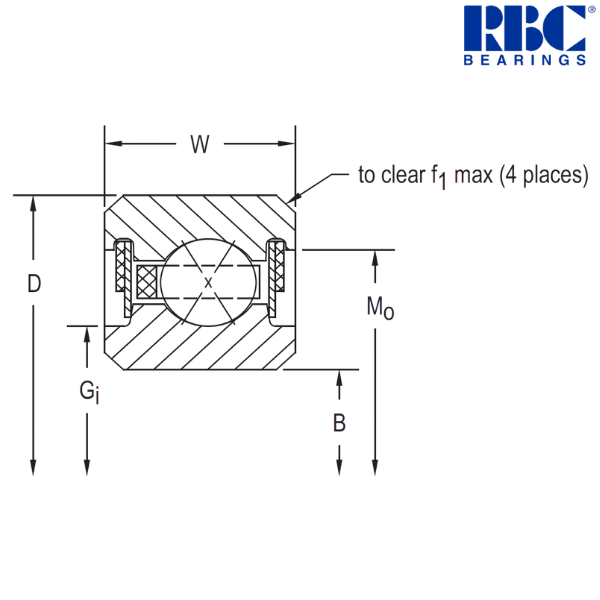

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 9.5 inch
Width (W) - 1 inch
Recess Diameter (Gi) - 8 inch
Groove Diameter (Mo) - 8.875 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 25 pcs.
Approximate Weight - 6.1 lbs
Radial Static Load - 13680 lbf
Radial Dynamic Load - 10410 lbf
Thrust Static Load - 34200 lbf
Thrust Dynamic Load - 19460 lbf
Moment Static Load - 58140 lbf
Moment Dynamic Load - 33196 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 241.3 mm
Width (W) - 25.4 mm
Recess Diameter (Gi) - 203.2 mm
Groove Diameter (Mo) - 225.43 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 2.767 kg
Radial Static Load - 60850 N
Radial Dynamic Load - 46310 N
Thrust Static Load - 152130 N
Thrust Dynamic Load - 86560 N
Moment Static Load - 6570 Nm
Moment Dynamic Load - 3750 Nm

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
G - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shielded Seals

* The alphanumeric identification system is used under license.
