GU050XP0 RBC

Brand - RBC
Item Number - GU050XP0*RBC
Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

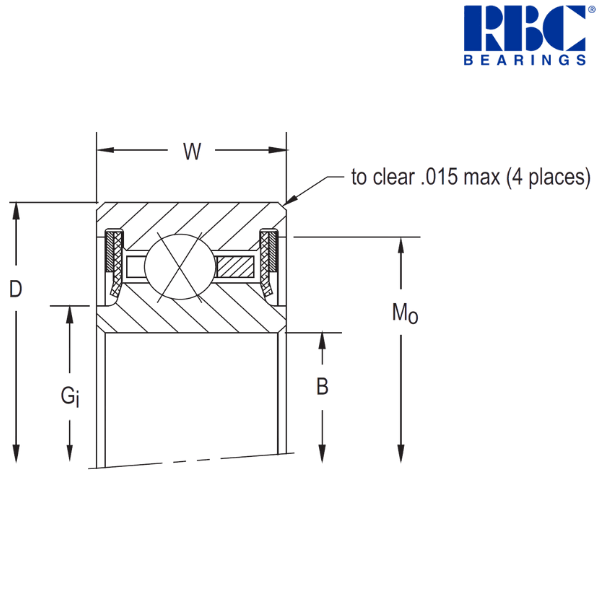

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 5.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 5.155 inch
Groove Diameter (Mo) - 5.55 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 43 pcs.
Approximate Weight - 0.68 lbs
Radial Static Load - 2590 lbf
Radial Dynamic Load - 1600 lbf
Thrust Static Load - 6460 lbf
Thrust Dynamic Load - 3040 lbf
Moment Static Load - 6950 lbf
Moment Dynamic Load - 3270 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 127 mm
Outside Diameter (D) - 146.05 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 130.94 mm
Groove Diameter (Mo) - 140.97 mm
Approximate Weight - 0.308 kg
Radial Static Load - 11520 N
Radial Dynamic Load - 7120 N
Thrust Static Load - 28740 N
Thrust Dynamic Load - 13520 N
Moment Static Load - 790 N
Moment Dynamic Load - 370 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
U - Extra Extended Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shieled Seals

* The alphanumeric identification system is used under license.

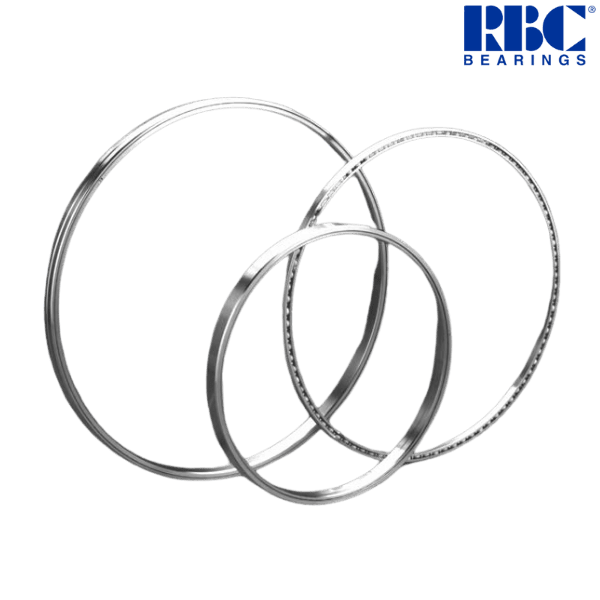

♦ ♦ Images are for representation purposes only
