GU070CP0 RBC

Brand - RBC
Item Number - GU070CP0*RBC
Category - Sealed (Combo) Radial Contact, C-Type Thin Section Ball Bearing

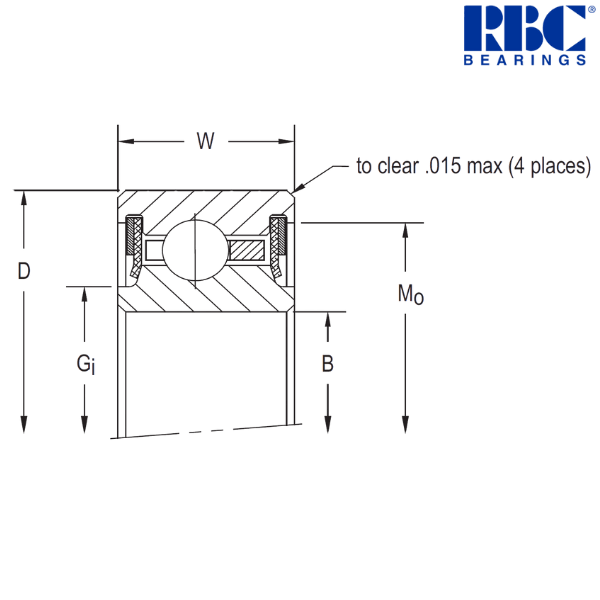

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 7.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 7.155 inch
Groove Diameter (Mo) - 7.55 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 59 pcs.
Approximate Weight - 0.93 lbs
Radial Static Load - 3550 lbf
Radial Dynamic Load - 1570 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.8 mm
Outside Diameter (D) - 196.85 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 181.74 mm
Groove Diameter (Mo) - 191.77 mm
Approximate Weight - 0.422 kg
Radial Static Load - 15790 N
Radial Dynamic Load - 6980 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
U - Extra Extended Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shieled Seals

* The alphanumeric identification system is used under license.

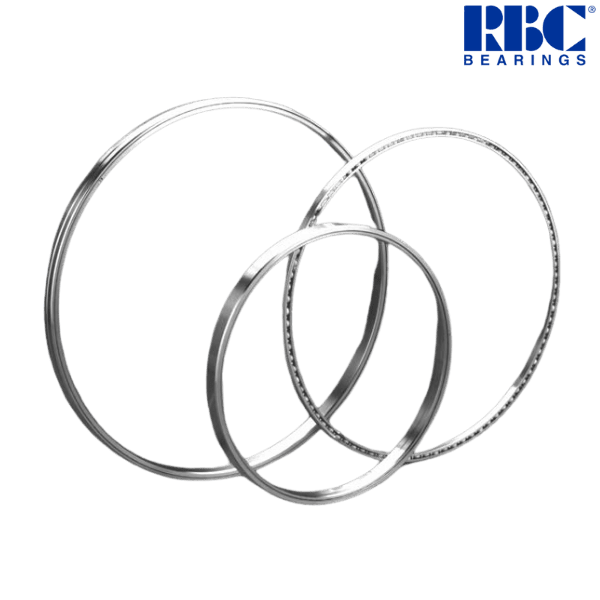

♦ ♦ Images are for representation purposes only
