GU075XP0 RBC

Brand - RBC
Item Number - GU075XP0*RBC

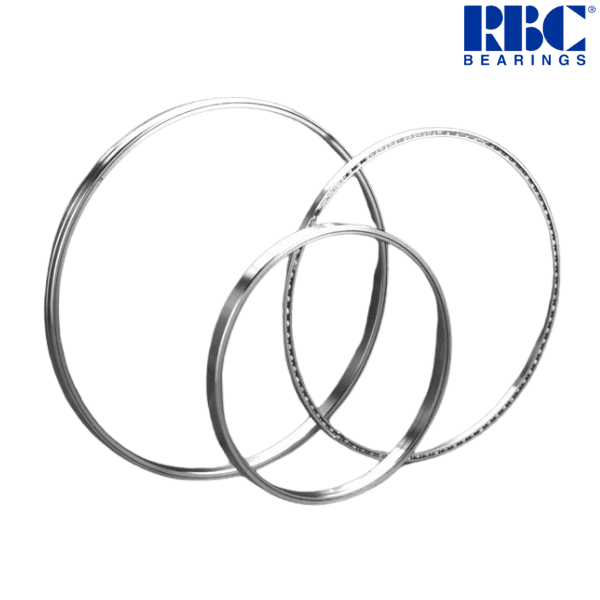

Category - Sealed (Combo) 4-Point Contact, X-Type Thin Section Ball Bearing

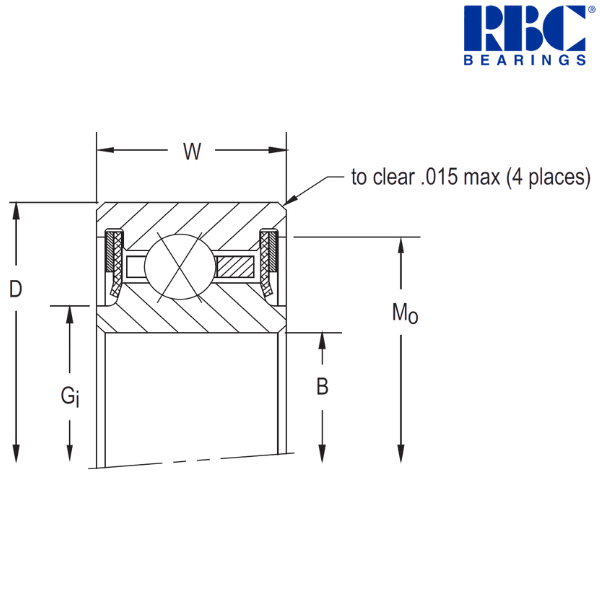

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8.25 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 7.655 inch
Groove Diameter (Mo) - 8.05 inch
Ball Diameter - 0.1875 inch
Ball Quantity - 63 pcs.
Approximate Weight - 0.99 lbs
Radial Static Load - 3790 lbf
Radial Dynamic Load - 2007 lbf
Thrust Static Load - 9470 lbf
Thrust Dynamic Load - 3480 lbf
Moment Static Load - 14910 lbf
Moment Dynamic Load - 5930 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 209.55 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 194.44 mm
Groove Diameter (Mo) - 204.47 mm
Approximate Weight - 0.449 kg
Radial Static Load - 16860 N
Radial Dynamic Load - 8930 N
Thrust Static Load - 42120 N
Thrust Dynamic Load - 15480 N
Moment Static Load - 1680 N
Moment Dynamic Load - 670 N

Description of Suffixes and Prefixes :
G - 2 combo - PTFE seal & shield
U - Extra Extended Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Shieled Seals

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
