H247549D/H247510 TIMKEN

Brand - TIMKEN
Item Number - H247549D/H247510 TIMKEN
Also Known As - H247549D - H247510
Category - Double Row Tapered Roller Bearing (TDI Type)

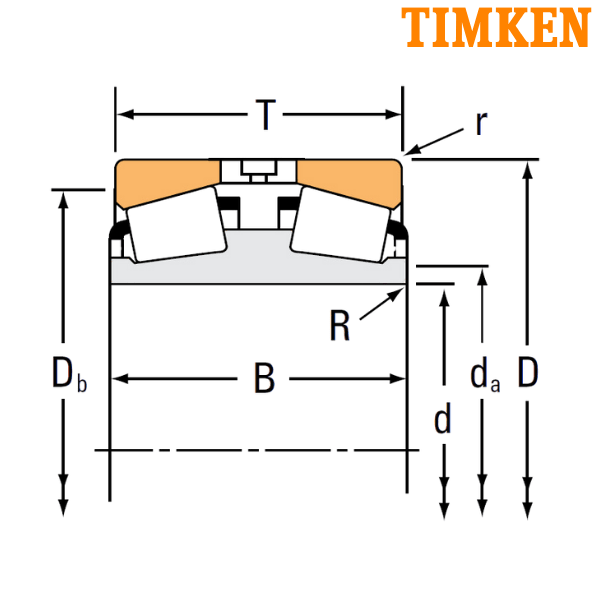

Bore Diameter (d) mm - 234.95
Bore Diameter (d) inch - 9.25
Outer Diameter (D) mm - 384.175
Outer Diameter (D) inch - 15.125
Bearing Width across Cups (T) mm - 209.55
Bearing Width across Cups (T) inch - 8.25
Double Cone Width (B) mm - 209.55
Double Cone Width (B) inch - 8.25
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 3090000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 694000
Factor (e) - 0.3
Factor (Y1) - 2
Factor (Y2) - 3
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 460000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 103000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 262000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 58800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 800000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 180000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.76
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 259
Cone Frontface Backing Diameter (da) inch - 10.2
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Cup Backface Backing Diameter (Db) mm - 346
Cup Backface Backing Diameter (Db) inch - 13.62
Geometry Factor (G1) - 1964.4
Geometry Factor (G2) - 148.4
Geometry Factor (Cg) - 0.1638
Weight (kg) - 98.04
Weight (lbs) - 216.13
Inner Part Number - H247549D
Outer Part Number - H247510
TDI - Double Inner Ring
