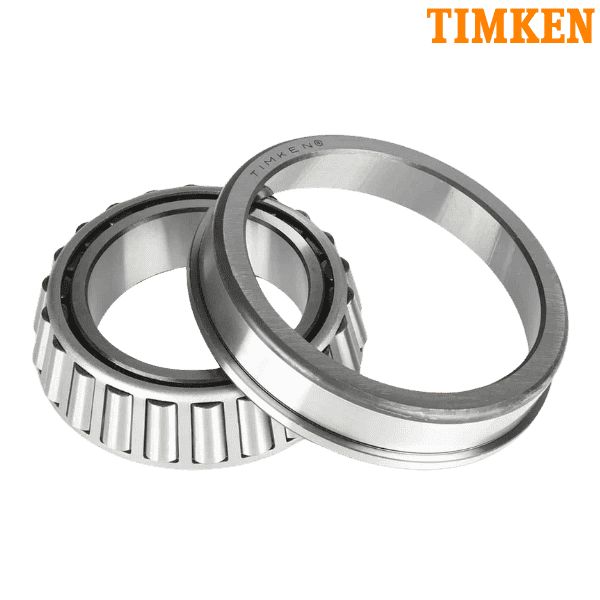

H715345/H715310-B TIMKEN

Brand - TIMKEN
Item Number - H715345/H715310-B TIMKEN
Also Known As - H715345 - H715310-B
Category - Single Row Tapered Roller Bearing (TSF Type)

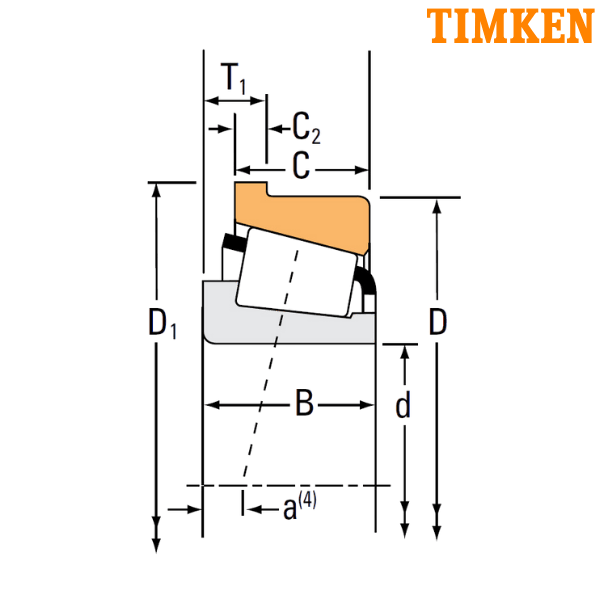

Bore Diameter (d) mm - 71.437
Bore Diameter (d) inch - 2.8125
Outer Diameter (D) mm - 139.7
Outer Diameter (D) inch - 5.5
Width (T1) mm - 17.462
Width (T1) inch - 0.6875
Dynamic Load Rating (C1) N - 319000
Dynamic Load Rating (C1) lbf - 71700
Factor (e) - 0.47
Factor (Y) - 1.27
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 82700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 18600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 67000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 15100
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24
Basic Static Radial Load Rating (C0) N - 405000
Basic Static Radial Load Rating (C0) lbf - 91000
Cone Width (B) mm - 46.038
Cone Width (B) inch - 1.8125
Cup Width (C) mm - 36.512
Cup Width (C) inch - 1.4375
Effective Center Location (a) mm - -8.6
Effective Center Location (a) inch - -0.34
Outer Diameter of Outer Ring Flange (D1) mm - 152.4
Outer Diameter of Outer Ring Flange (D1) inch - 6
Flange Width (C2) mm - 7.938
Flange Width (C2) inch - 0.3125
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 88
Cone Frontface Backing Diameter (da) inch - 3.46
Cone Backface Backing Diameter (db) mm - 94
Cone Backface Backing Diameter (db) inch - 3.7
Cup Frontface Backing Diameter (Da) mm - 135
Cup Frontface Backing Diameter (Da) inch - 5.31
Geometry Factor (G1) - 147.1
Geometry Factor (G2) - 33.5
Geometry Factor (Cg) - 0.0993
Weight (kg) - 3.48
Weight (lbs) - 7.68
Inner Part Number - H715345
Outer Part Number - H715310-B
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
