H924033/H924010D TIMKEN

Brand - TIMKEN
Item Number - H924033/H924010D TIMKEN
Also Known As - H924033 - H924010D
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 101.6
Bore Diameter (d) inch - 4
Outer Diameter (D) mm - 214.312
Outer Diameter (D) inch - 8.4375
Bearing Width across Cones (T) mm - 115.888
Bearing Width across Cones (T) inch - 4.5625
Double Outer Ring Width (C) mm - 84.138
Double Outer Ring Width (C) inch - 3.3125
Dynamic Load Rating (C1) N - 970000
Dynamic Load Rating (C1) lbf - 218000
Factor (e) - 0.67
Factor (Y1) - 1
Factor (Y2) - 1.49
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 144000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 32500
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 167000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 37500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 251000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 56500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.87

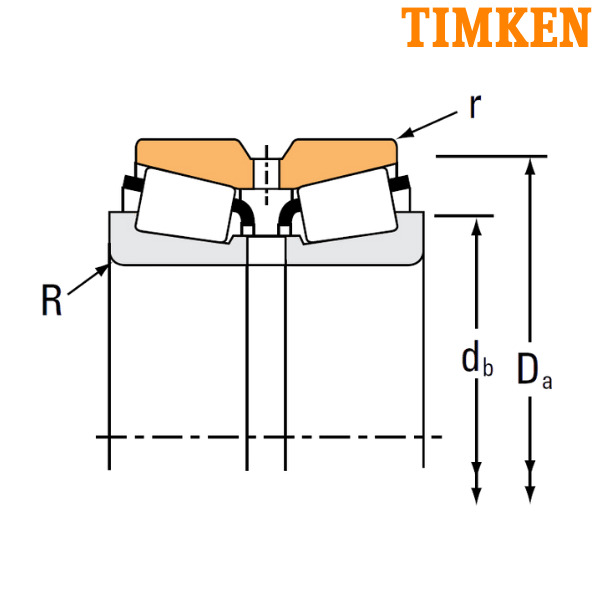

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Backface Backing Diameter (db) mm - 132
Cone Backface Backing Diameter (db) inch - 5.2
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 205
Cup Frontface Backing Diameter (Da) inch - 8.07
Geometry Factor (G1) - 245.6
Geometry Factor (G2) - 32.2
Geometry Factor (Cg) - 0.1299
Bearing Weight (kg) - 18.56
Bearing Weight (lbs) - 40.91
Inner Part Number - H924033
Outer Part Number - H924010D
TDO - Single Piece (Double) Outer Ring and Two Single Inner Rings

** Images are for representation purposes only
