HCB7216-E-T-P4S FAG

Brand - FAG
Item Number - HCB7216-E-T-P4S FAG
Category - Spindle Bearing
Weight (m) kg - 1.18
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 140
Width (B) mm - 26
Minimum Chamfer Dimension (rmin) mm - 2
Minimum Chamfer Dimension (r1min) mm - 2
Contact angle (°) - 25

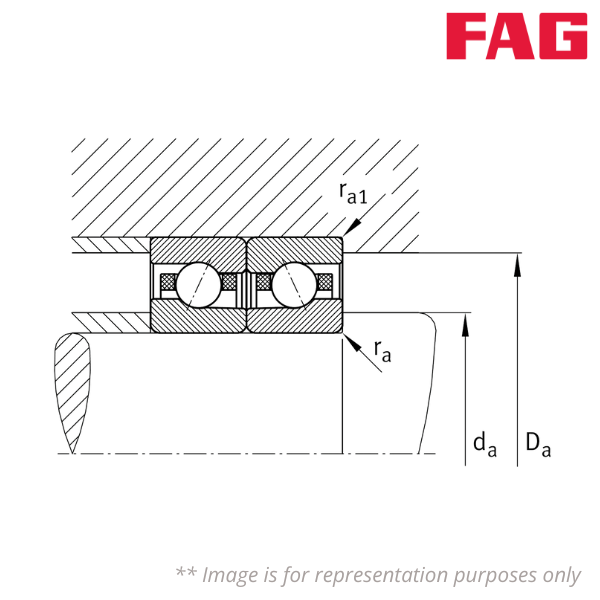

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 91
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 129

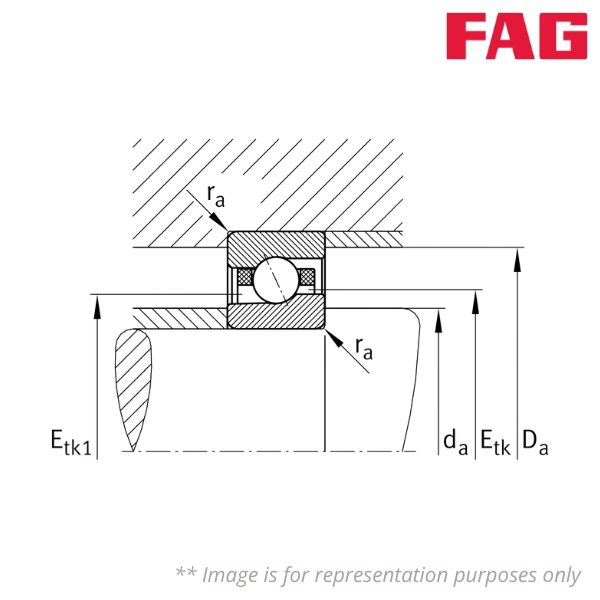

Minimum Diameter Injection Pitch (Etk) mm - 105.3
Basic Dynamic Load Rating, Radial (Cr) N - 89000
Basic Static Load Rating, Radial (C0r) N - 50000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 11000
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 18000
Preload Force Light (FV L) N - 428
Preload Force Medium (FV M) N - 1527
Preload Force Heavy (FV H) N - 3225
Lift-off Force Light (KaE L) N - 1232
Lift-off Force Medium (KaE M) N - 4498
Lift-off Force Heavy (KaE H) N - 9728
Axial Rigidity Light (Ca L) N/µm - 196
Axial Rigidity Medium (Ca M) N/µm - 312
Axial Rigidity Heavy (Ca H) N/µm - 416
