Description
Brand - FAG
Item Number - HCM7026-E-T-P4S-XL FAG
Category - Spindle Bearing
Weight (m) kg - 3.4
Inner Diameter (d) mm - 130
Outer Diameter (D) mm - 200
Width (B) mm - 33
Minimum Chamfer Dimension (rmin) mm - 2
Minimum Chamfer Dimension (r1min) mm - 1
Contact angle (°) - 25

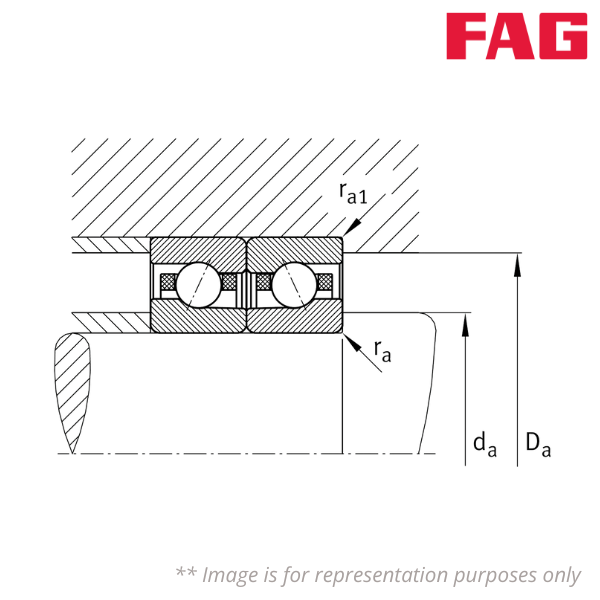

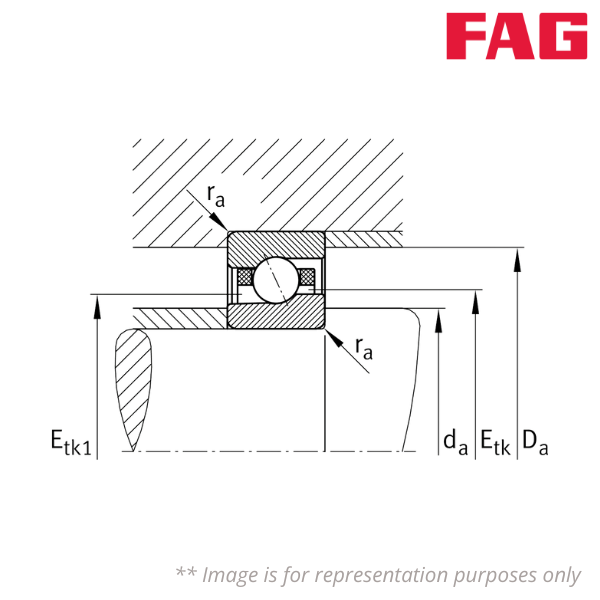

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 142
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 189
Minimum Diameter Injection Pitch (Etk) mm - 161.3
Basic Dynamic Load Rating, Radial (Cr) N - 55000
Basic Static Load Rating, Radial (C0r) N - 45500
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 11900
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 16200
Preload Force Light (FV L) N - 529
Preload Force Medium (FV M) N - 1387
Preload Force Heavy (FV H) N - 2889
Lift-off Force Light (KaE L) N - 1519
Lift-off Force Medium (KaE M) N - 4038
Lift-off Force Heavy (KaE H) N - 8558
Axial Rigidity Light (Ca L) N/µm - 282
Axial Rigidity Medium (Ca M) N/µm - 398
Axial Rigidity Heavy (Ca H) N/µm - 523
