HH224346/HH224310CD TIMKEN

Brand - TIMKEN
Item Number - HH224346/HH224310CD TIMKEN
Also Known As - HH224346 - HH224310CD
Category - Double Row Tapered Roller Bearing (TDO Type)
Bore Diameter (d) mm - 114.3
Bore Diameter (d) inch - 4.5
Outer Diameter (D) mm - 212.725
Outer Diameter (D) inch - 8.375
Bearing Width across Cones (T) mm - 142.875
Bearing Width across Cones (T) inch - 5.625
Double Outer Ring Width (C) mm - 117.475
Double Outer Ring Width (C) inch - 4.625
Dynamic Load Rating (C1) N - 1180000
Dynamic Load Rating (C1) lbf - 266000
Factor (e) - 0.33
Factor (Y1) - 2.07
Factor (Y2) - 3.09
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 176000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 39600
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 98300
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 22100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 307000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 69000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.79

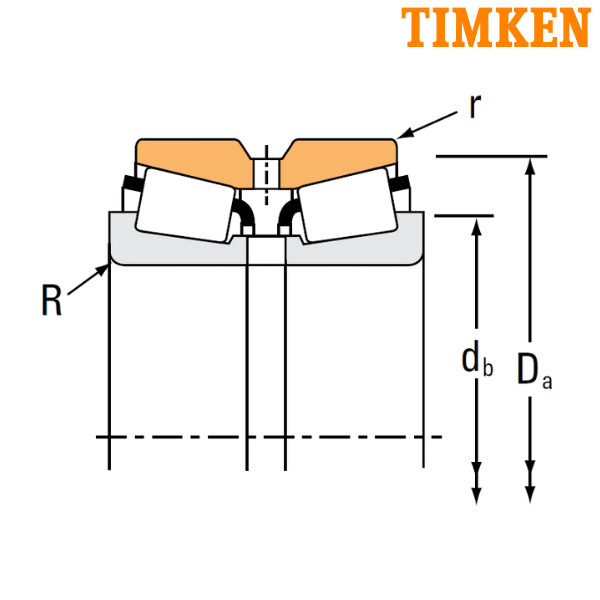

Maximum Shaft Fillet Radius (R) mm - 7
Maximum Shaft Fillet Radius (R) inch - 0.28
Cone Backface Backing Diameter (db) mm - 143
Cone Backface Backing Diameter (db) inch - 5.63
Maximum Housing Fillet Radius (r) mm - 1.5
Maximum Housing Fillet Radius (r) inch - 0.06
Cup Frontface Backing Diameter (Da) mm - 201.7
Cup Frontface Backing Diameter (Da) inch - 7.94

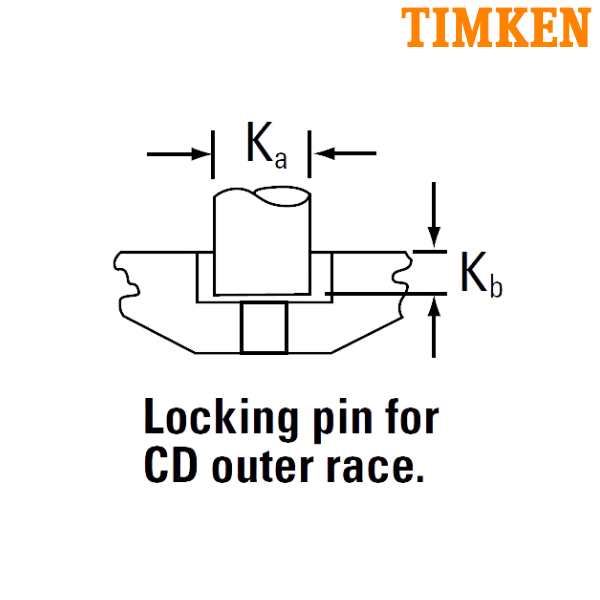

PIn (Ka) mm - 25.4
PIn (Ka) inch - 1
PIn (Kb) mm - 7.95
PIn (Kb) inch - 0.31
Geometry Factor (G1) - 366.6
Geometry Factor (G2) - 47.9
Geometry Factor (Cg) - 0.1182
Bearing Weight (kg) - 20.46
Bearing Weight (lbs) - 45.09
Inner Part Number - HH224346
Outer Part Number - HH224310CD

** Images are for representation purposes only
