Brand - TIMKEN
Item Number - HH506348/HH506311 TIMKEN
Also Known As - HH506348 - HH506311
Category - Single Row Tapered Roller Bearing (TS Type)

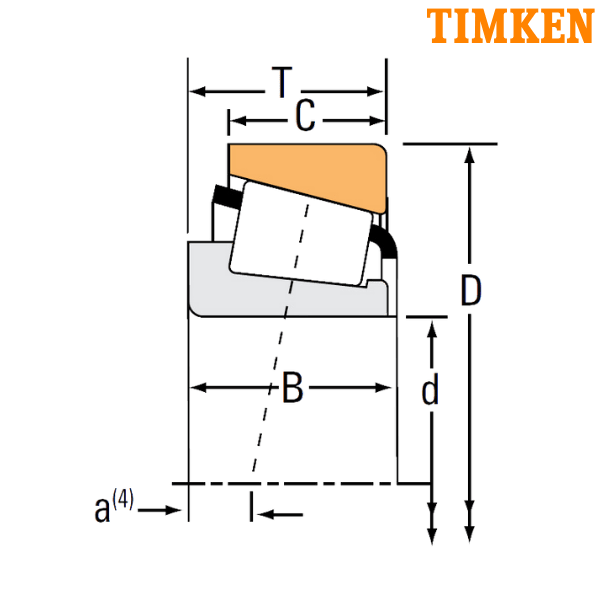

Bore Diameter (d) mm - 49.212
Bore Diameter (d) inch - 1.9375
Outer Diameter (D) mm - 114.3
Outer Diameter (D) inch - 4.5
Width (T) mm - 44.45
Width (T) inch - 1.75
Dynamic Load Rating (C1) N - 246000
Dynamic Load Rating (C1) lbf - 55300
Factor (e) - 0.4
Factor (Y) - 1.49
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 63700
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 14300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 43800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 9860
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.45
Basic Static Radial Load Rating (C0) N - 290000
Basic Static Radial Load Rating (C0) lbf - 65100
Cone Width (B) mm - 44.45
Cone Width (B) inch - 1.75
Cup Width (C) mm - 36.068
Cup Width (C) inch - 1.42
Effective Center Location (a) mm - -13.5
Effective Center Location (a) inch - -0.53

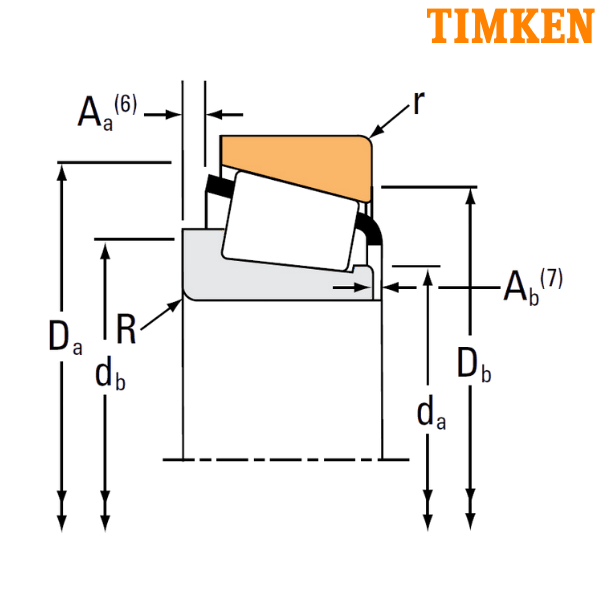

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 61
Cone Frontface Backing Diameter (da) inch - 2.4
Cone Backface Backing Diameter (db) mm - 71
Cone Backface Backing Diameter (db) inch - 2.8
Max Housing Fillet Radius (r) mm - 0.8
Max Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 107
Cup Frontface Backing Diameter (Da) inch - 4.21
Cup Backface Backing Diameter (Db) mm - 99
Cup Backface Backing Diameter (Db) inch - 3.9
Cage-Cone Backface Clearance (Aa) mm - 2.7
Cage-Cone Backface Clearance (Aa) inch - 0.1
Cage-Cone Frontface Clearance (Ab) mm - 3.3
Cage-Cone Frontface Clearance (Ab) inch - 0.13
Geometry Factor (G1) - 72
Geometry Factor (G2) - 15.6
Geometry Factor (Cg) - 0.1078
Weight (kg) - 2.28
Weight (lbs) - 5
Inner Part Number - HH506348
Outer Part Number - HH506311
TS - Single Row Tapered Roller Bearing

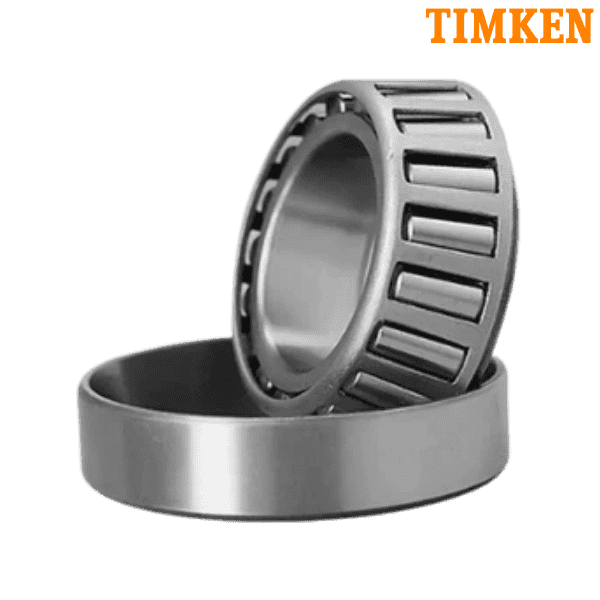

** Images are for representation purposes only
