HM535349/HM535310-B TIMKEN

Brand - TIMKEN
Item Number - HM535349/HM535310-B TIMKEN
Also Known As - HM535349 - HM535310-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 171.45
Bore Diameter (d) inch - 6.75
Outer Diameter (D) mm - 260.35
Outer Diameter (D) inch - 10.25
Width (T1) mm - 25.4
Width (T1) inch - 1
Dynamic Load Rating (C1) N - 654000
Dynamic Load Rating (C1) lbf - 147000
Factor (e) - 0.4
Factor (Y) - 1.49
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 169000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 38100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 117000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 26200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.45
Basic Static Radial Load Rating (C0) N - 1180000
Basic Static Radial Load Rating (C0) lbf - 265000
Cone Width (B) mm - 66.675
Cone Width (B) inch - 2.625
Cup Width (C) mm - 52.388
Cup Width (C) inch - 2.0625
Effective Center Location (a) mm - -8.6
Effective Center Location (a) inch - -0.34
Outer Diameter of Outer Ring Flange (D1) mm - 271.374
Outer Diameter of Outer Ring Flange (D1) inch - 10.684
Flange Width (C2) mm - 11.112
Flange Width (C2) inch - 0.4375

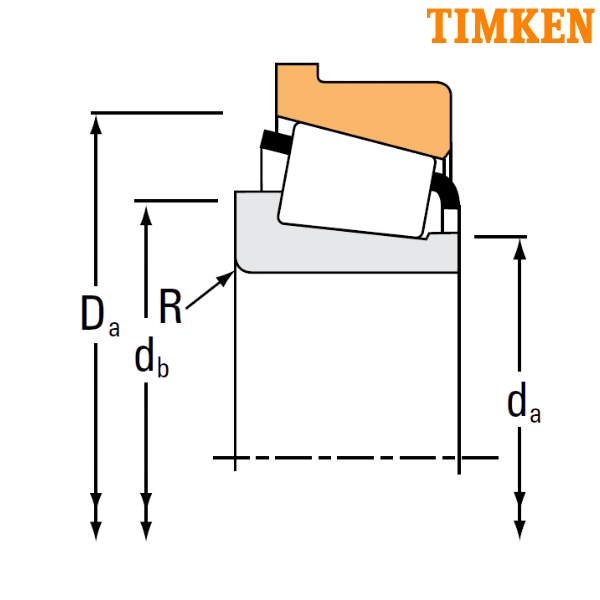

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 186.1
Cone Frontface Backing Diameter (da) inch - 7.4
Cone Backface Backing Diameter (db) mm - 192
Cone Backface Backing Diameter (db) inch - 7.56
Cup Frontface Backing Diameter (Da) mm - 250
Cup Frontface Backing Diameter (Da) inch - 9.84
Geometry Factor (G1) - 749.5
Geometry Factor (G2) - 115.6
Geometry Factor (Cg) - 0.1263
Weight (kg) - 12.73
Weight (lbs) - 28.06
Inner Part Number - HM535349
Outer Part Number - HM535310-B
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
