HM803149/HM803110 (HM803110EB) TIMKEN

Brand - TIMKEN
Item Number - HM803149/HM803110 (HM803110EB) TIMKEN
Also Known As - HM803149 - HM803110 (HM803110EB)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 44.45
Bore Diameter (d) inch - 1.75
Outer Diameter (D) mm - 88.9
Outer Diameter (D) inch - 3.5
Width (T) mm - 60.325
Width (T) inch - 2.375
Width (B) mm - 58.74
Width (B) inch - 2.3126
Dynamic Radial Rating (C1) N - 198000
Dynamic Radial Rating (C1) lbf - 44500
Factor (e) - 0.55
Factor (Y1) - 1.24
Factor (Y2) - 1.84
Dynamic Radial Rating (90 million revolutions) (C90) N - 29500
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 6630
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 27600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 6200
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 51300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 11500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.07
Maximum Shaft Fillet Radius (R) mm - 0.3
Maximum Shaft Fillet Radius (R) inch - 0.01
Backing Shoulder Diameter (db) mm - 53.4
Backing Shoulder Diameter (db) inch - 2.1
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 74
Cup Frontface Backing Diameter (Da) inch - 2.91
Weight (kg) - 1.76
Weight (lbs) - 3.88
Outer Spacer - HM803110EB
Inner Part Number - HM803149
Outer Part Number - HM803110
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

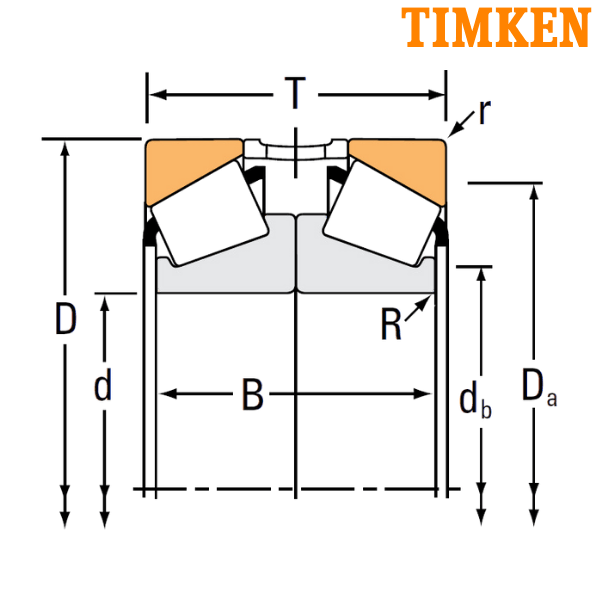

** Images are for representation purposes only
