HM804848/HM804810 (HM804810EE) TIMKEN

Brand - TIMKEN
Item Number - HM804848/HM804810 (HM804810EE) TIMKEN
Also Known As - HM804848 - HM804810 (HM804810EE)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 48.412
Bore Diameter (d) inch - 1.906
Outer Diameter (D) mm - 95.25
Outer Diameter (D) inch - 3.75
Width (T) mm - 60.325
Width (T) inch - 2.375
Width (B) mm - 58.74
Width (B) inch - 2.3126
Dynamic Radial Rating (C1) N - 257000
Dynamic Radial Rating (C1) lbf - 57700
Factor (e) - 0.55
Factor (Y1) - 1.24
Factor (Y2) - 1.84
Dynamic Radial Rating (90 million revolutions) (C90) N - 38200
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 8590
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 35700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8030
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 66600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 15000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.07
Maximum Shaft Fillet Radius (R) mm - 2.3
Maximum Shaft Fillet Radius (R) inch - 0.09
Backing Shoulder Diameter (db) mm - 57
Backing Shoulder Diameter (db) inch - 2.26
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 81
Cup Frontface Backing Diameter (Da) inch - 3.19
Weight (kg) - 1.99
Weight (lbs) - 4.42
Outer Spacer - HM804810EE
Inner Part Number - HM804848
Outer Part Number - HM804810

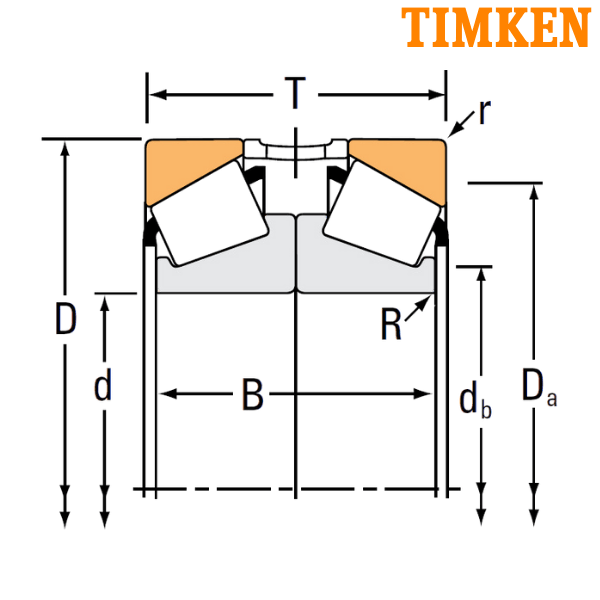

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
