HM813844/HM813815-B TIMKEN

Brand - TIMKEN
Item Number - HM813844/HM813815-B TIMKEN
Also Known As - HM813844 - HM813815-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 66.675
Bore Diameter (d) inch - 2.625
Outer Diameter (D) mm - 130.2
Outer Diameter (D) inch - 5.126
Width (T1) mm - 19.865
Width (T1) inch - 0.7821
Dynamic Load Rating (C1) N - 229000
Dynamic Load Rating (C1) lbf - 51500
Factor (e) - 0.5
Factor (Y) - 1.2
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 59400
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 13400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 51100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 11500
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.16
Basic Static Radial Load Rating (C0) N - 256000
Basic Static Radial Load Rating (C0) lbf - 57600
Cone Width (B) mm - 36.512
Cone Width (B) inch - 1.4375
Cup Width (C) mm - 26.988
Cup Width (C) inch - 1.0625
Effective Center Location (a) mm - -3.8
Effective Center Location (a) inch - -0.15
Outer Diameter of Outer Ring Flange (D1) mm - 138.201
Outer Diameter of Outer Ring Flange (D1) inch - 5.441
Flange Width (C2) mm - 10.34
Flange Width (C2) inch - 0.4071

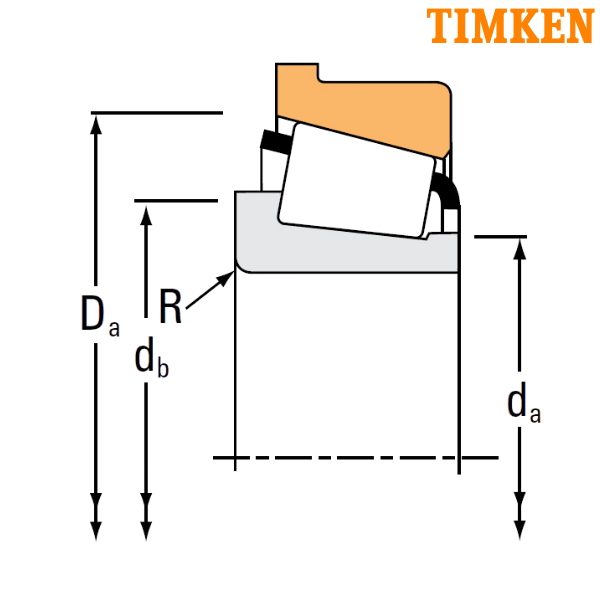

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 82
Cone Frontface Backing Diameter (da) inch - 3.23
Cone Backface Backing Diameter (db) mm - 88
Cone Backface Backing Diameter (db) inch - 3.46
Cup Frontface Backing Diameter (Da) mm - 124
Cup Frontface Backing Diameter (Da) inch - 4.88
Geometry Factor (G1) - 91.7
Geometry Factor (G2) - 22.9
Geometry Factor (Cg) - 0.1252
Weight (kg) - 2.26
Weight (lbs) - 4.98
Inner Part Number - HM813844
Outer Part Number - HM813815-B

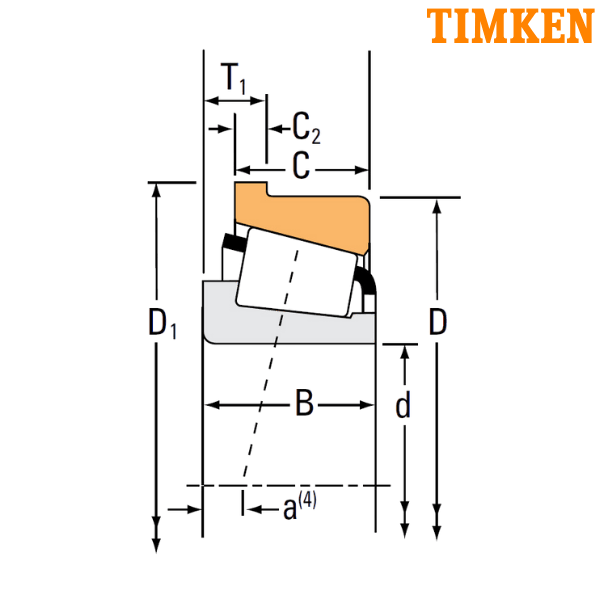

TSF - Single-Row Bearing with a Flange on the Outer Ring

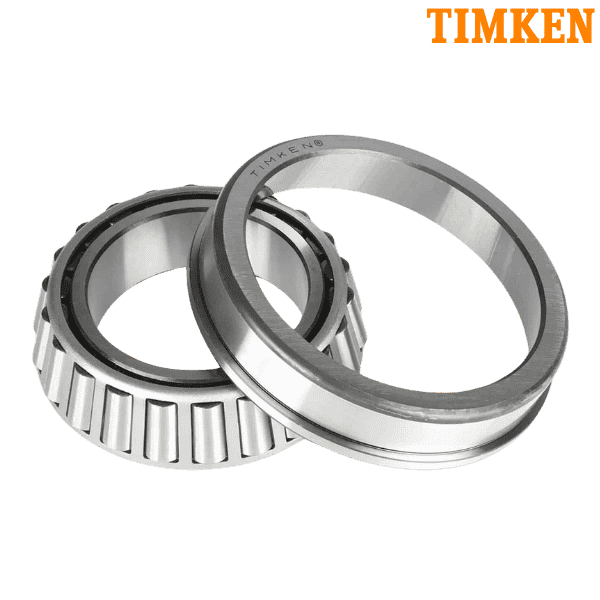

** Images are for representation purposes only
