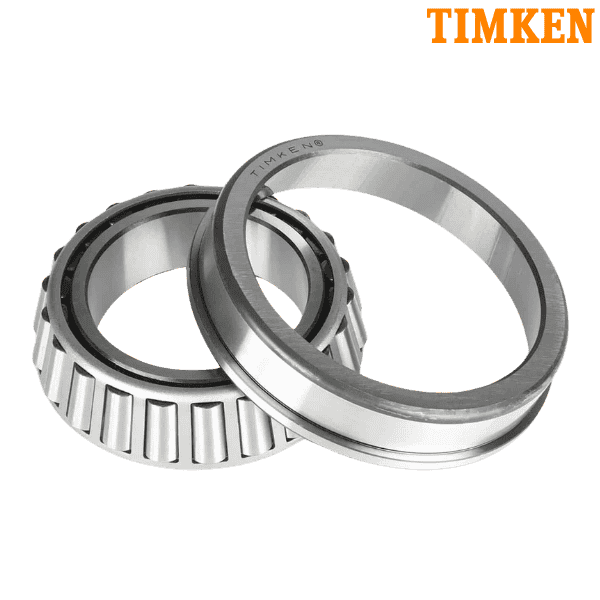

HM911244/HM911210-B TIMKEN

Brand - TIMKEN
Item Number - HM911244/HM911210-B TIMKEN
Also Known As - HM911244 - HM911210-B
Category - Single Row Tapered Roller Bearing (TSF Type)

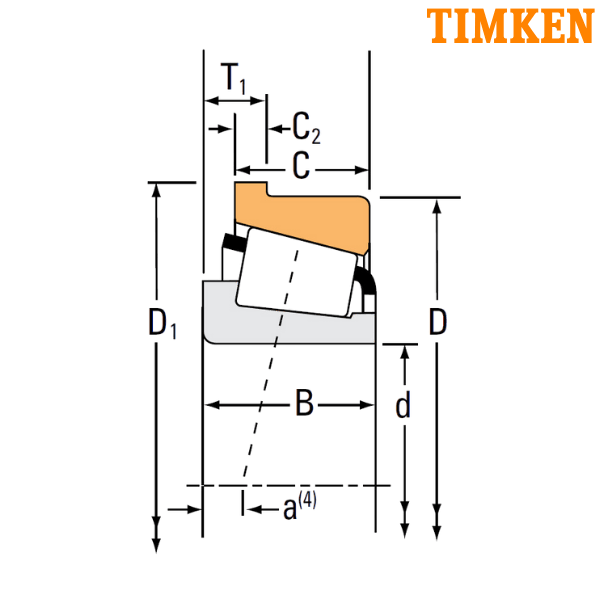

Bore Diameter (d) mm - 59.987
Bore Diameter (d) inch - 2.3617
Outer Diameter (D) mm - 130.175
Outer Diameter (D) inch - 5.125
Width (T1) mm - 16.637
Width (T1) inch - 0.655
Dynamic Load Rating (C1) N - 198000
Dynamic Load Rating (C1) lbf - 44400
Factor (e) - 0.82
Factor (Y) - 0.73
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 51200
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 11500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 71900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 16200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.71
Basic Static Radial Load Rating (C0) N - 183000
Basic Static Radial Load Rating (C0) lbf - 41100
Cone Width (B) mm - 30.924
Cone Width (B) inch - 1.2175
Cup Width (C) mm - 23.812
Cup Width (C) inch - 0.9375
Effective Center Location (a) mm - 7.9
Effective Center Location (a) inch - 0.31
Outer Diameter of Outer Ring Flange (D1) mm - 136.525
Outer Diameter of Outer Ring Flange (D1) inch - 5.375
Flange Width (C2) mm - 6.35
Flange Width (C2) inch - 0.25
Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14

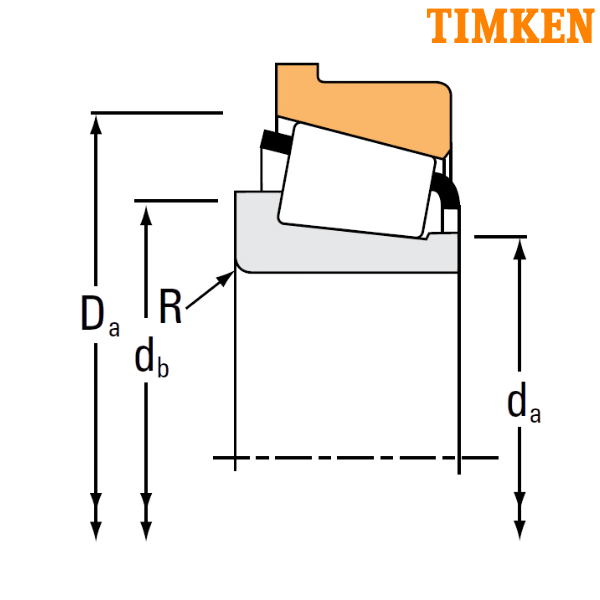

Cone Frontface Backing Diameter (da) mm - 74.4
Cone Frontface Backing Diameter (da) inch - 2.93
Cone Backface Backing Diameter (db) mm - 84
Cone Backface Backing Diameter (db) inch - 3.31
Cup Frontface Backing Diameter (Da) mm - 123.6
Cup Frontface Backing Diameter (Da) inch - 4.87
Geometry Factor (G1) - 56.4
Geometry Factor (G2) - 16.5
Geometry Factor (Cg) - 0.0842
Weight (kg) - 2.09
Weight (lbs) - 4.6
Inner Part Number - HM911244
Outer Part Number - HM911210-B
TSF - Single-Row Bearing with a Flange on the Outer Ring
