IR 2325 RBC

Brand - RBC
Item Number - IR 2325 RBC
Category - Inner Ring

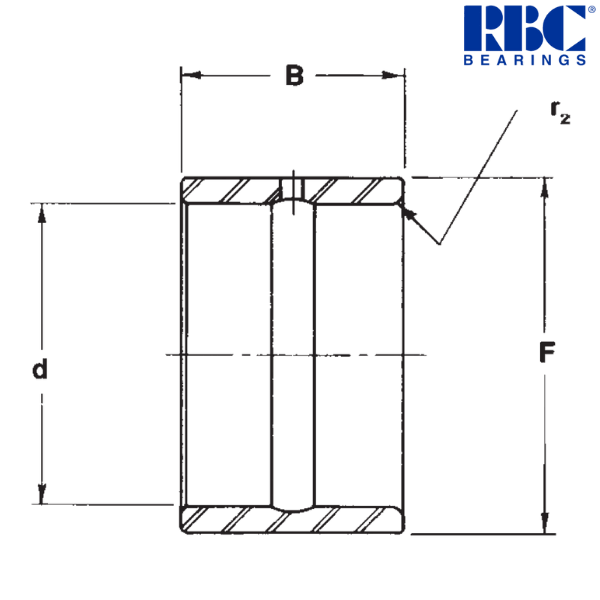

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 6 inch
Minimum Inside Diameter (d) - 5.999 inch
Maximum Inside Diameter (d) - 6 inch
Nominal Outside Diameter (F) * - 7.25 inch
Maximum Outside Diameter (F) - 7.2481 inch
Minimum Outside Diameter (F) - 7.2469 inch
Width (B) - 2.515 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.12 inch
Approximate Weight - 9.22 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 5.9994 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 5.9985 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 6.0013 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 6.0006 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 4.18212 kg

Other salient points to be noted :
* Sorted by outside diameter.

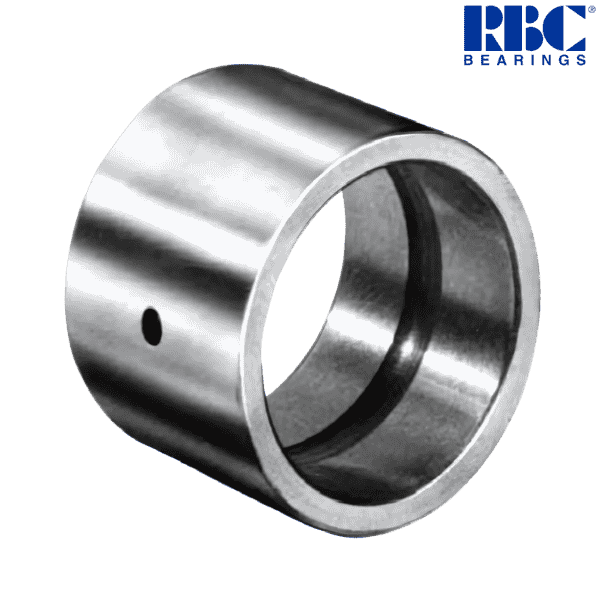

♦ ♦ Images are for representation purposes only
