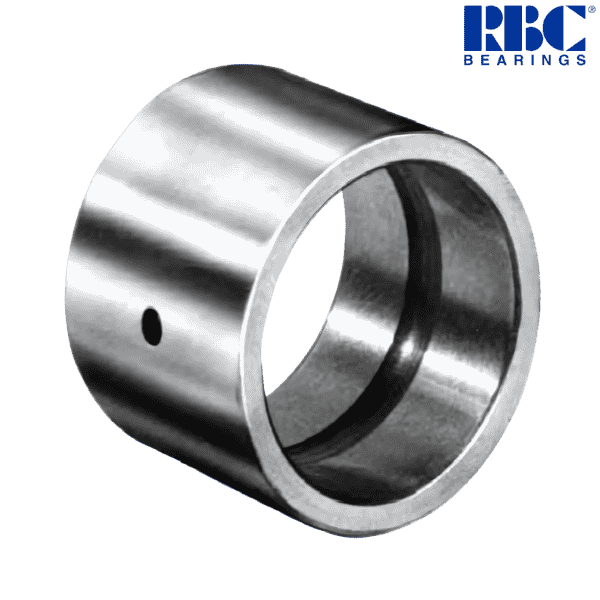

IR 2426 RBC

Brand - RBC
Item Number - IR 2426 RBC
Category - Inner Ring

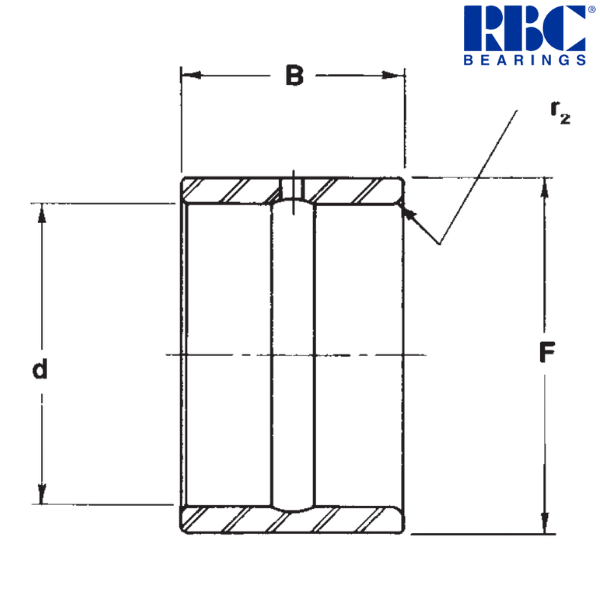

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 6.5 inch
Minimum Inside Diameter (d) - 6.499 inch
Maximum Inside Diameter (d) - 6.5 inch
Nominal Outside Diameter (F) * - 7.75 inch
Maximum Outside Diameter (F) - 7.7481 inch
Minimum Outside Diameter (F) - 7.7469 inch
Width (B) - 3.015 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.12 inch
Approximate Weight - 11.9 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 6.4994 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 6.4985 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 6.5013 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 6.5006 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 5.39774 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
