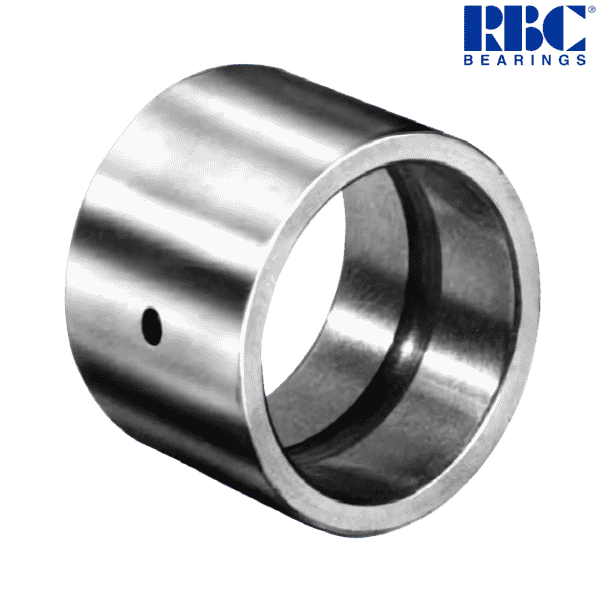

IR 6769 RBC

Brand - RBC
Item Number - IR 6769 RBC
Category - Inner Ring

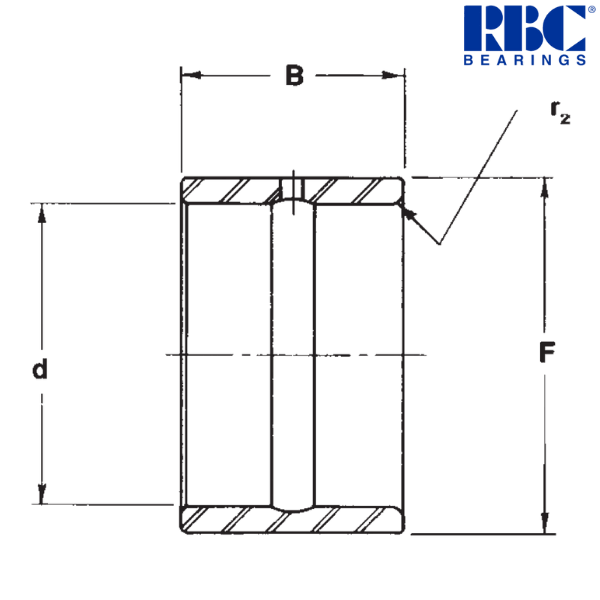

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 3.75 inch
Minimum Inside Diameter (d) - 3.7492 inch
Maximum Inside Diameter (d) - 3.75 inch
Nominal Outside Diameter (F) * - 4.5 inch
Maximum Outside Diameter (F) - 4.4985 inch
Minimum Outside Diameter (F) - 4.4976 inch
Width (B) - 2.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.1 inch
Approximate Weight - 3.09 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.7495 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.7487 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 3.7511 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 3.7505 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 1.40160 kg

Other salient points to be noted :
* Sorted by outside diameter.
