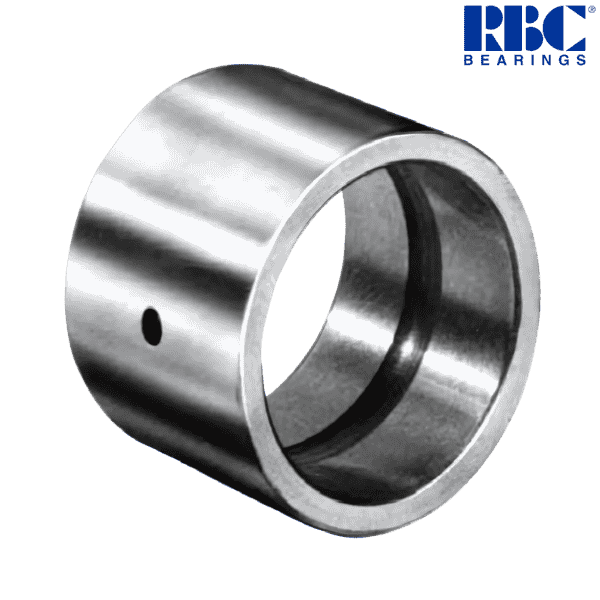

IR 6849 C RBC

Brand - RBC
Item Number - IR 6849 C RBC
Category - Inner Ring

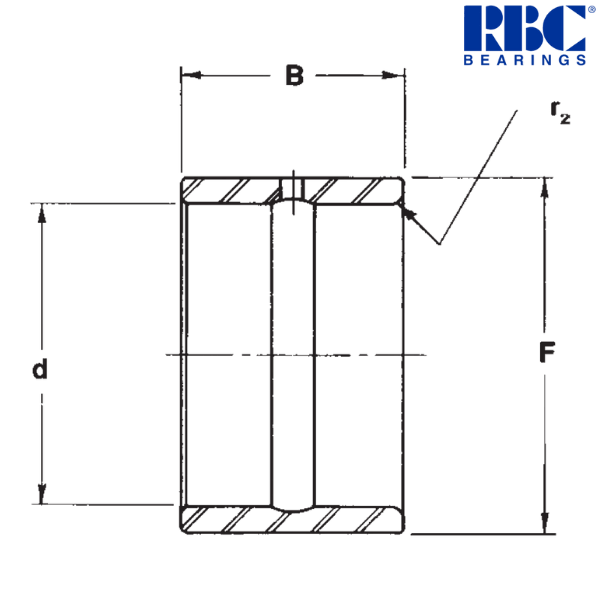

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 4.25 inch
Minimum Inside Diameter (d) - 4.2492 inch
Maximum Inside Diameter (d) - 4.25 inch
Nominal Outside Diameter (F) * - 5 inch
Maximum Outside Diameter (F) - 4.9985 inch
Minimum Outside Diameter (F) - 4.9975 inch
Width (B) - 2.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.1 inch
Approximate Weight - 3.47 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 4.2495 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 4.2487 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.2511 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.2505 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 1.57396 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
