IR 6849 RBC

Brand - RBC
Item Number - IR 6849 RBC
Category - Inner Ring

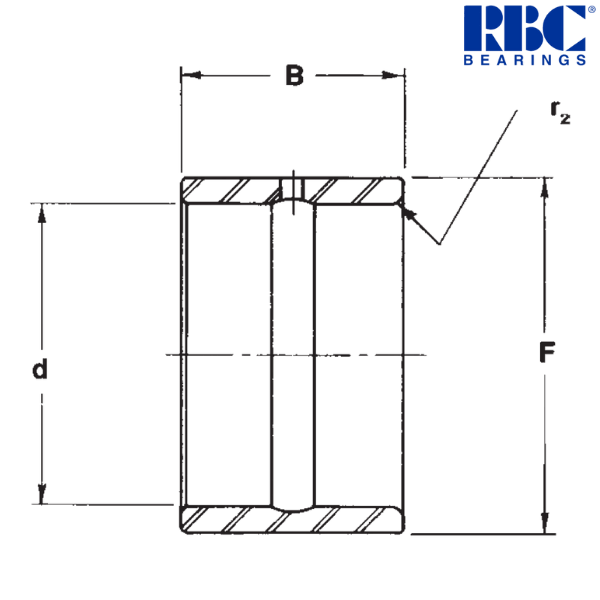

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 4 inch
Minimum Inside Diameter (d) - 3.9992 inch
Maximum Inside Diameter (d) - 4 inch
Nominal Outside Diameter (F) * - 5 inch
Maximum Outside Diameter (F) - 4.9985 inch
Minimum Outside Diameter (F) - 4.9975 inch
Width (B) - 2.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.1 inch
Approximate Weight - 4.5 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.9995 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.9987 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.0011 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.0005 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 2.04116 kg

Other salient points to be noted :
* Sorted by outside diameter.

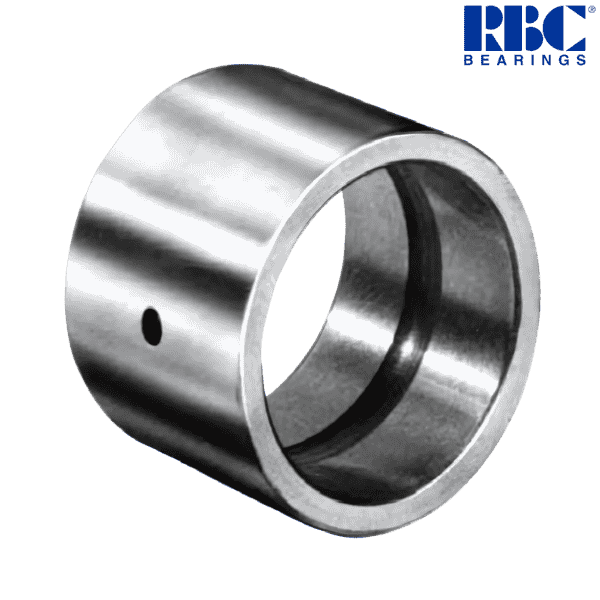

♦ ♦ Images are for representation purposes only
