IR 6919 RBC

Brand - RBC
Item Number - IR 6919 RBC
Category - Inner Ring

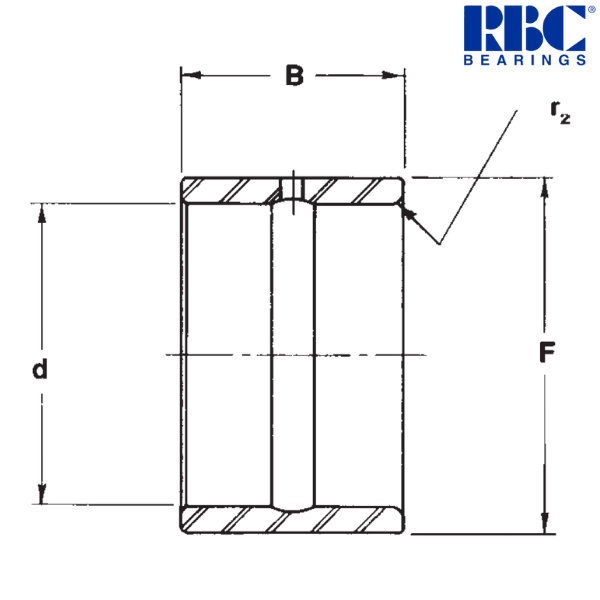

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 4.5 inch
Minimum Inside Diameter (d) - 4.4992 inch
Maximum Inside Diameter (d) - 4.5 inch
Nominal Outside Diameter (F) * - 5.5 inch
Maximum Outside Diameter (F) - 5.4985 inch
Minimum Outside Diameter (F) - 5.4975 inch
Width (B) - 3.015 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.1 inch
Approximate Weight - 6.68 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 4.4995 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 4.4987 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.5011 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.5005 inch
MS 51962 Suffix ** - (-44)

Principal Dimensions & Load Ratings (Metric) :
Weight - 3.02999 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

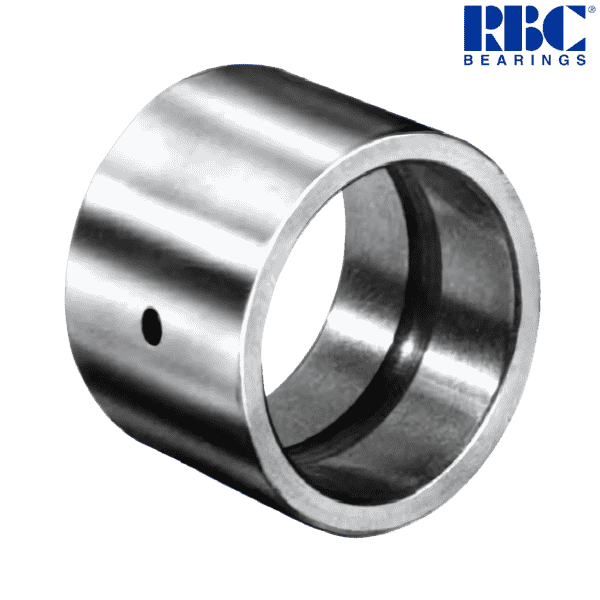

♦ ♦ Images are for representation purposes only
