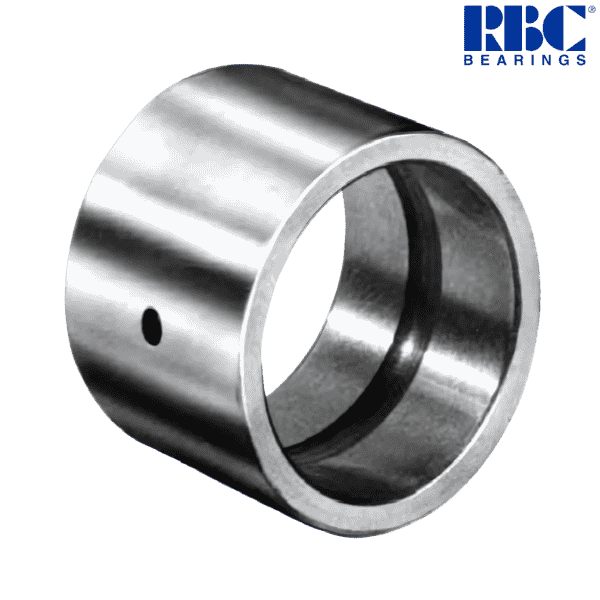

IR 6922 RBC

Brand - RBC
Item Number - IR 6922 RBC
Category - Inner Ring

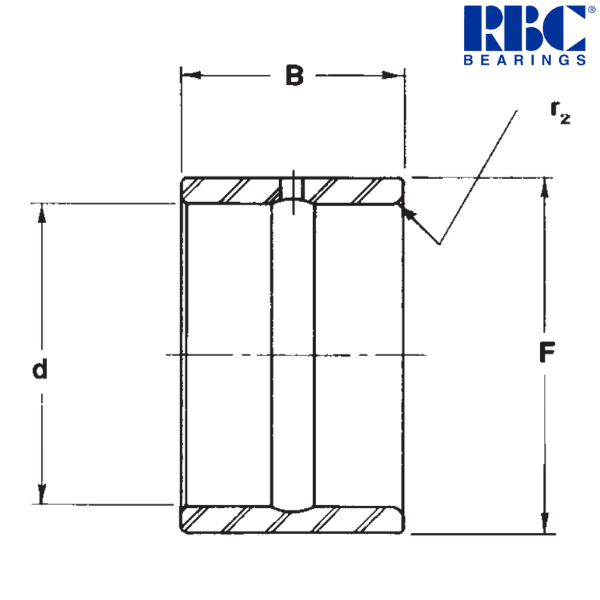

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 4.75 inch
Minimum Inside Diameter (d) - 4.7483 inch
Maximum Inside Diameter (d) - 4.7492 inch
Nominal Outside Diameter (F) * - 5.75 inch
Maximum Outside Diameter (F) - 5.7483 inch
Minimum Outside Diameter (F) - 5.7473 inch
Width (B) - 3.015 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.12 inch
Approximate Weight - 7.02 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 4.7494 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 4.7487 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.7513 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 4.7506 inch
MS 51962 Suffix ** - (-45)

Principal Dimensions & Load Ratings (Metric) :
Weight - 3.18422 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

♦ ♦ Images are for representation purposes only
