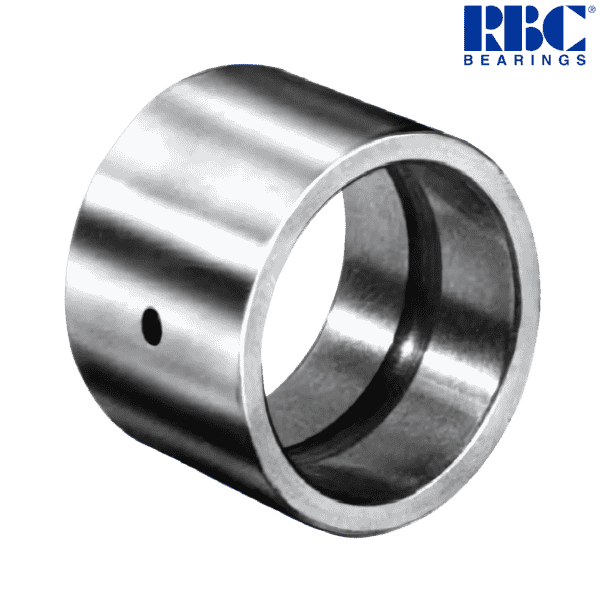

IR 7205 RBC

Brand - RBC
Item Number - IR 7205 RBC
Category - Inner Ring

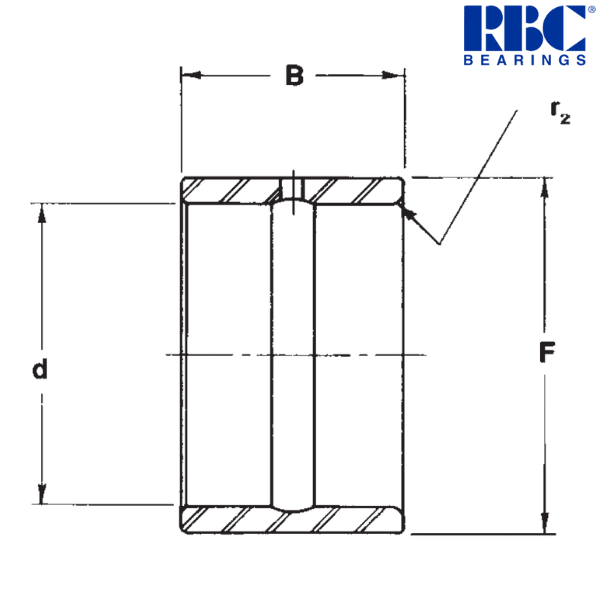

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 0.8125 inch
Minimum Inside Diameter (d) - 0.812 inch
Maximum Inside Diameter (d) - 0.8125 inch
Nominal Outside Diameter (F) * - 1.0625 inch
Maximum Outside Diameter (F) - 1.0618 inch
Minimum Outside Diameter (F) - 1.0613 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.04 inch
Approximate Weight - 0.121 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.8122 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.8117 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.8132 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.8128 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.05488 kg

Other salient points to be noted :
* Sorted by outside diameter.
