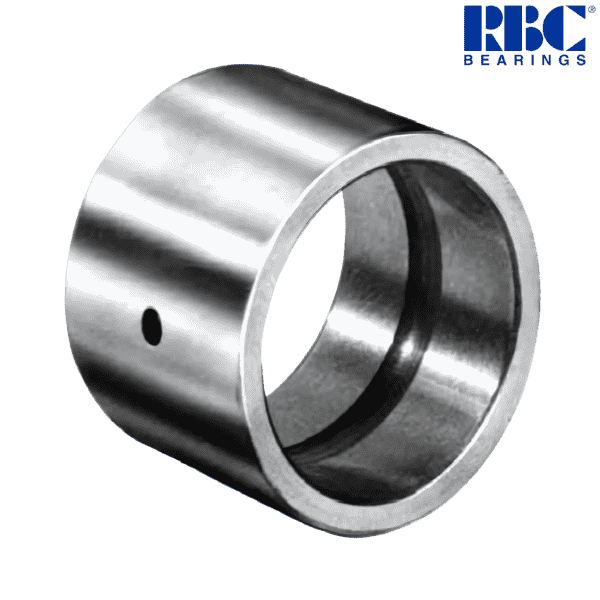

IR 7215 RBC

Brand - RBC
Item Number - IR 7215 RBC
Category - Inner Ring

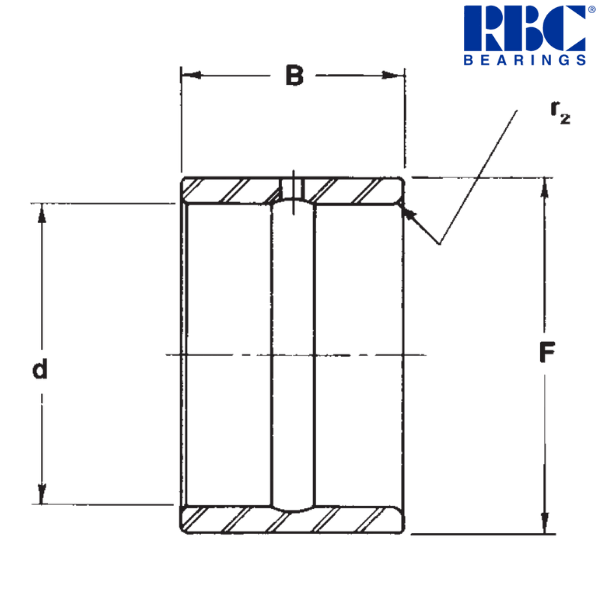

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 0.875 inch
Minimum Inside Diameter (d) - 0.8745 inch
Maximum Inside Diameter (d) - 0.875 inch
Nominal Outside Diameter (F) * - 1.125 inch
Maximum Outside Diameter (F) - 1.1241 inch
Minimum Outside Diameter (F) - 1.1236 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.04 inch
Approximate Weight - 0.132 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.8747 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 0.8742 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.8757 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 0.8753 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.05987 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
