IR 7255 D RBC

Brand - RBC
Item Number - IR 7255 D RBC
Category - Inner Ring

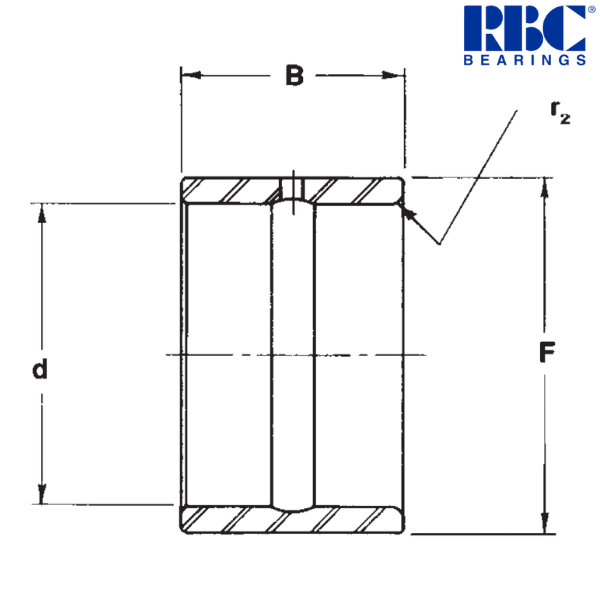

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.0625 inch
Minimum Inside Diameter (d) - 1.062 inch
Maximum Inside Diameter (d) - 1.0625 inch
Nominal Outside Diameter (F) * - 1.375 inch
Maximum Outside Diameter (F) - 1.3741 inch
Minimum Outside Diameter (F) - 1.3735 inch
Width (B) - 1.26 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.04 inch
Approximate Weight - 0.222 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.0622 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.0617 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.0632 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.0628 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.10070 kg

Other salient points to be noted :
* Sorted by outside diameter.

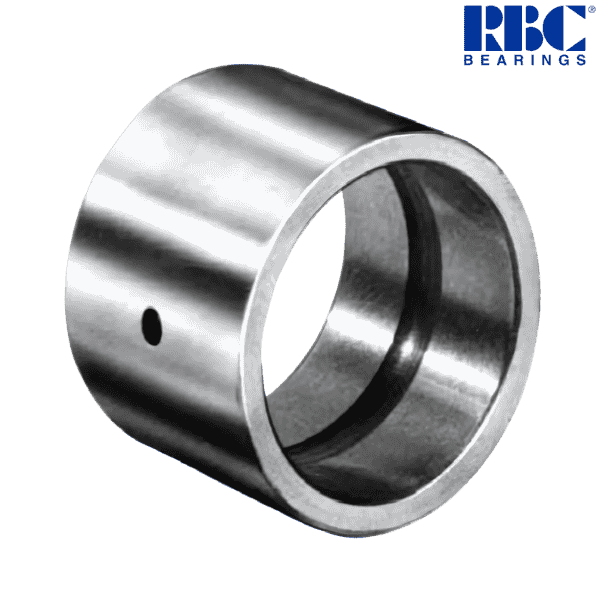

♦ ♦ Images are for representation purposes only
