IR 7324 RBC

Brand - RBC
Item Number - IR 7324 RBC
Category - Inner Ring

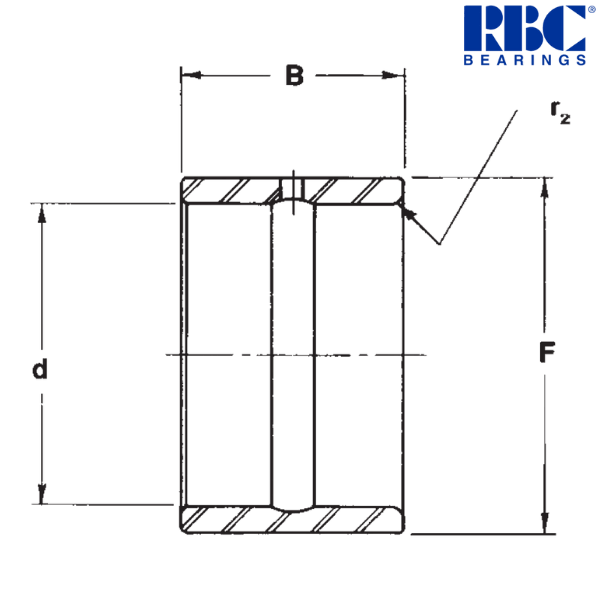

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.5 inch
Minimum Inside Diameter (d) - 1.4995 inch
Maximum Inside Diameter (d) - 1.5 inch
Nominal Outside Diameter (F) * - 1.8125 inch
Maximum Outside Diameter (F) - 1.8115 inch
Minimum Outside Diameter (F) - 1.8109 inch
Width (B) - 1.01 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.06 inch
Approximate Weight - 0.232 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.4996 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.499 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.5008 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.5004 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.10523 kg

Other salient points to be noted :
* Sorted by outside diameter.

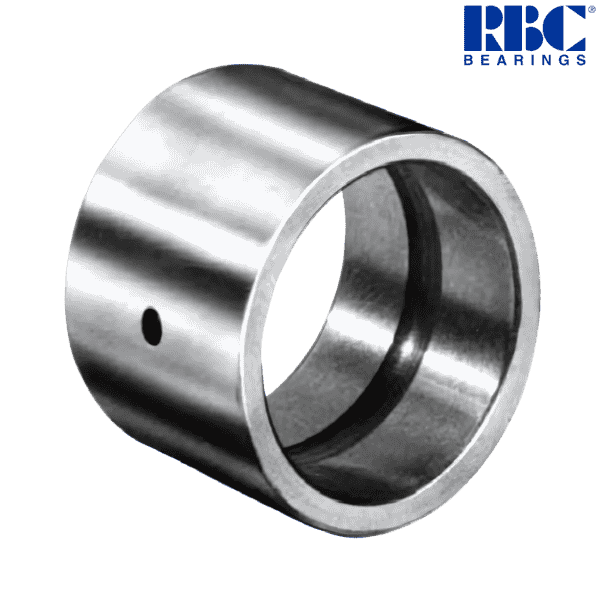

♦ ♦ Images are for representation purposes only
