IR 7344 RBC

Brand - RBC
Item Number - IR 7344 RBC
Category - Inner Ring

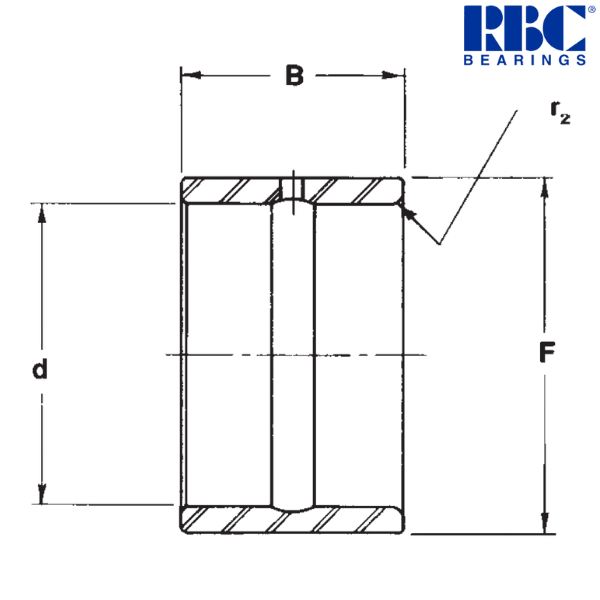

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 1.625 inch
Minimum Inside Diameter (d) - 1.6245 inch
Maximum Inside Diameter (d) - 1.625 inch
Nominal Outside Diameter (F) * - 1.9375 inch
Maximum Outside Diameter (F) - 1.9364 inch
Minimum Outside Diameter (F) - 1.9357 inch
Width (B) - 1.01 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.06 inch
Approximate Weight - 0.249 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.6246 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.624 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.6258 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 1.6254 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.11294 kg

Other salient points to be noted :
* Sorted by outside diameter.

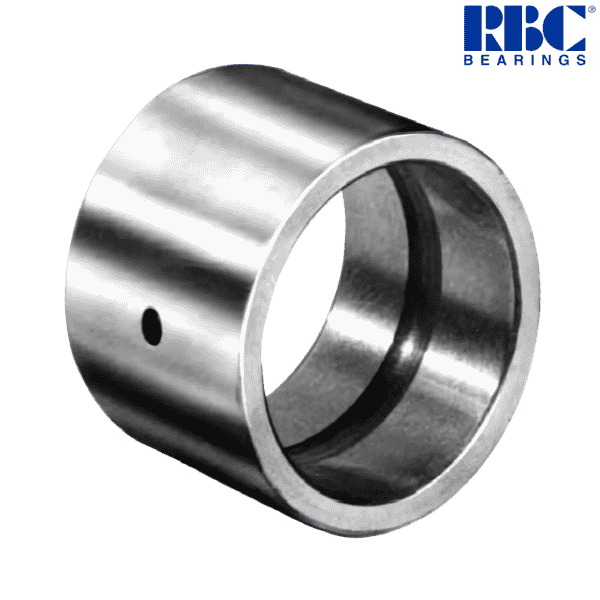

♦ ♦ Images are for representation purposes only
