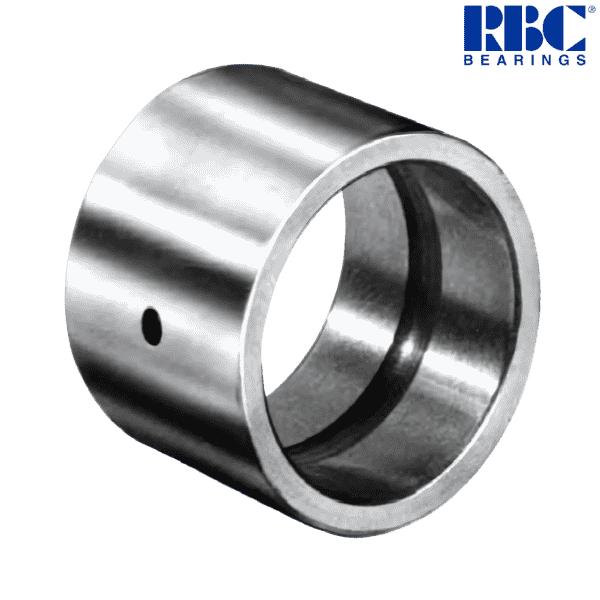

IR 8447 C RBC

Brand - RBC
Item Number - IR 8447 C RBC
Category - Inner Ring

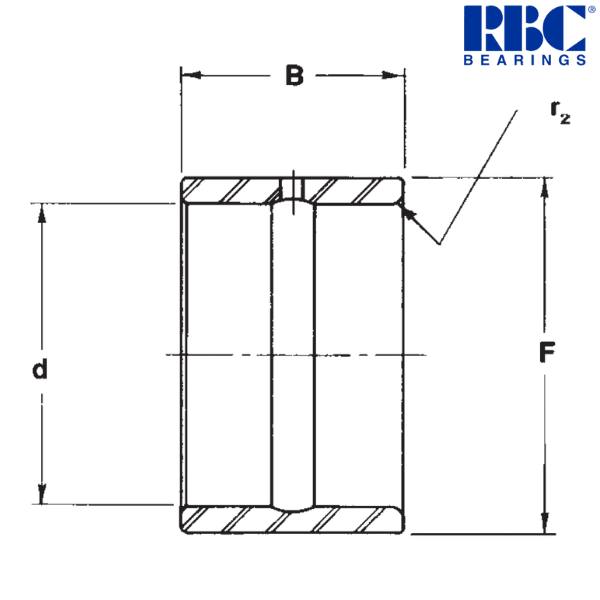

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 2 inch
Minimum Inside Diameter (d) - 1.9995 inch
Maximum Inside Diameter (d) - 2 inch
Nominal Outside Diameter (F) * - 2.5 inch
Maximum Outside Diameter (F) - 2.4989 inch
Minimum Outside Diameter (F) - 2.4982 inch
Width (B) - 1.76 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.08 inch
Approximate Weight - 0.879 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.9996 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 1.9989 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.001 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.0005 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.39871 kg

Other salient points to be noted :
* Sorted by outside diameter.

♦ ♦ Images are for representation purposes only
