IR 8476 C RBC

Brand - RBC
Item Number - IR 8476 C RBC
Category - Inner Ring

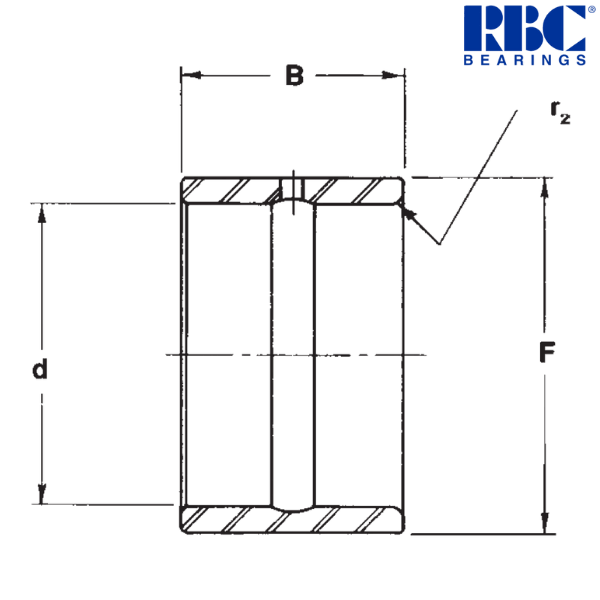

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 2.25 inch
Minimum Inside Diameter (d) - 2.2494 inch
Maximum Inside Diameter (d) - 2.25 inch
Nominal Outside Diameter (F) * - 2.75 inch
Maximum Outside Diameter (F) - 2.7489 inch
Minimum Outside Diameter (F) - 2.7482 inch
Width (B) - 1.51 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.08 inch
Approximate Weight - 0.838 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 2.2496 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 2.2489 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.251 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.2505 inch
MS 51962 Suffix ** - (-29)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.38011 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

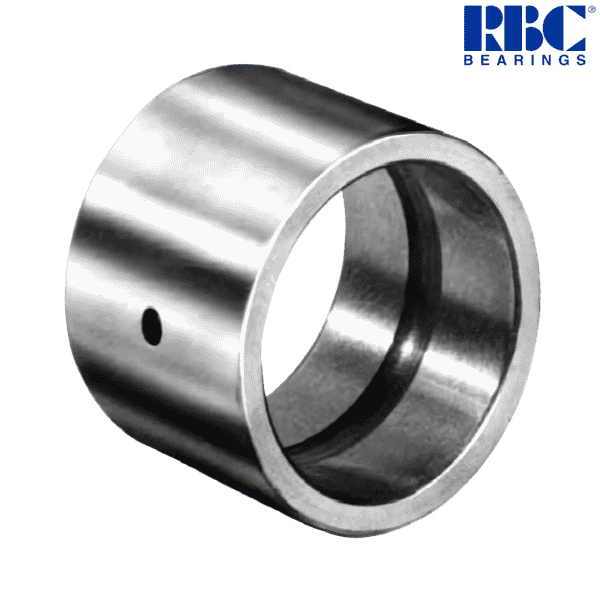

♦ ♦ Images are for representation purposes only
