IR 8517 RBC

Brand - RBC
Item Number - IR 8517 RBC
Category - Inner Ring

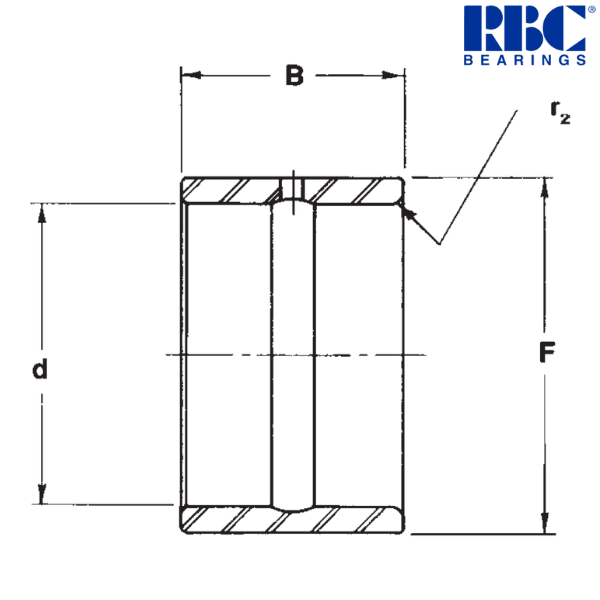

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 2.375 inch
Minimum Inside Diameter (d) - 2.3744 inch
Maximum Inside Diameter (d) - 2.375 inch
Nominal Outside Diameter (F) * - 3 inch
Maximum Outside Diameter (F) - 2.9989 inch
Minimum Outside Diameter (F) - 2.9982 inch
Width (B) - 1.76 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.08 inch
Approximate Weight - 1.313 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 2.3746 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 2.3739 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.376 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.3755 inch
MS 51962 Suffix ** - (-30)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.59557 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

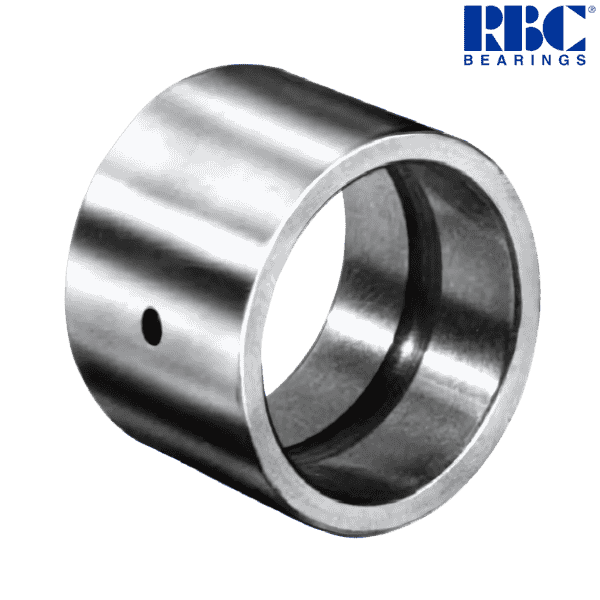

♦ ♦ Images are for representation purposes only
