IR 9568 RBC

Brand - RBC
Item Number - IR 9568 RBC
Category - Inner Ring

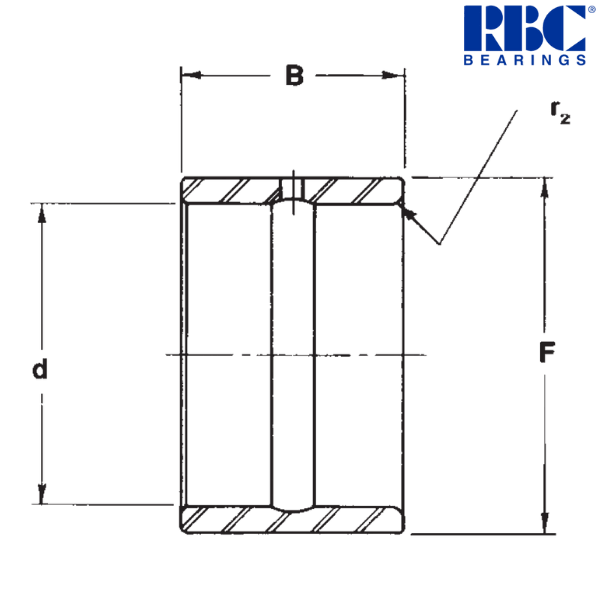

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 2.75 inch
Minimum Inside Diameter (d) - 2.7494 inch
Maximum Inside Diameter (d) - 2.75 inch
Nominal Outside Diameter (F) * - 3.25 inch
Maximum Outside Diameter (F) - 3.2487 inch
Minimum Outside Diameter (F) - 3.2478 inch
Width (B) - 2.01 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.08 inch
Approximate Weight - 1.337 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 2.7496 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 2.7489 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.751 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 2.7505 inch
MS 51962 Suffix ** - (-33)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.60645 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

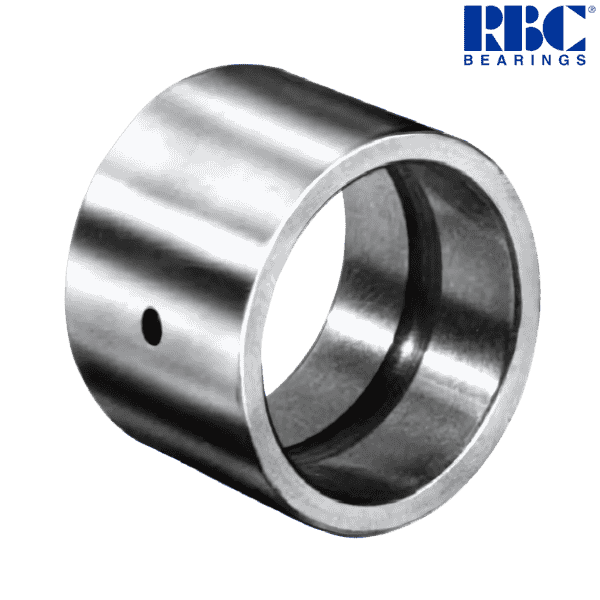

♦ ♦ Images are for representation purposes only
