IR 9647 RBC

Brand - RBC
Item Number - IR 9647 RBC
Category - Inner Ring

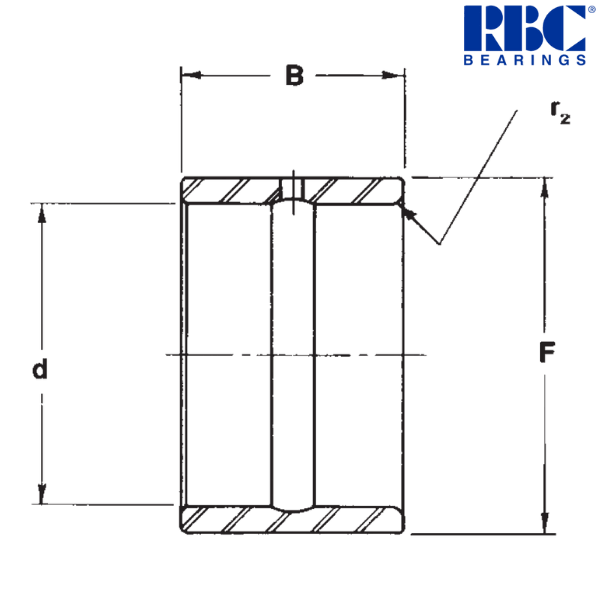

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 3.125 inch
Minimum Inside Diameter (d) - 3.1244 inch
Maximum Inside Diameter (d) - 3.125 inch
Nominal Outside Diameter (F) * - 3.75 inch
Maximum Outside Diameter (F) - 3.7487 inch
Minimum Outside Diameter (F) - 3.7478 inch
Width (B) - 1.76 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.1 inch
Approximate Weight - 1.67 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.1246 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.1239 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 3.1259 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 3.1254 inch

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.75750 kg

Other salient points to be noted :
* Sorted by outside diameter.

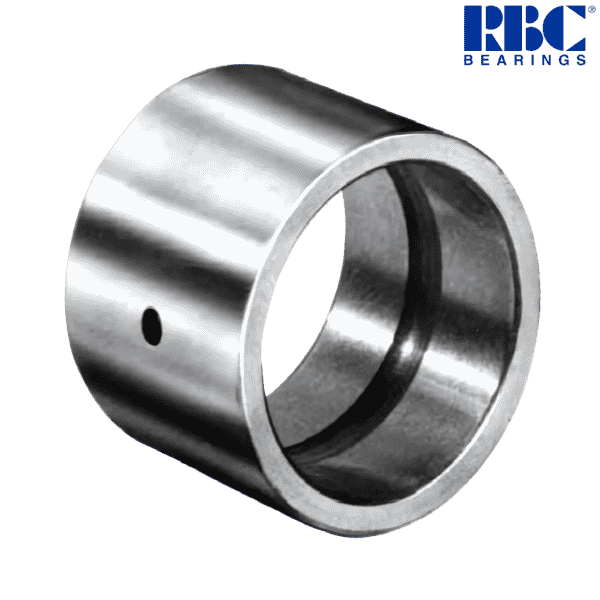

♦ ♦ Images are for representation purposes only
