IR 9728 C1 RBC

Brand - RBC
Item Number - IR 9728 C1 RBC
Category - Inner Ring

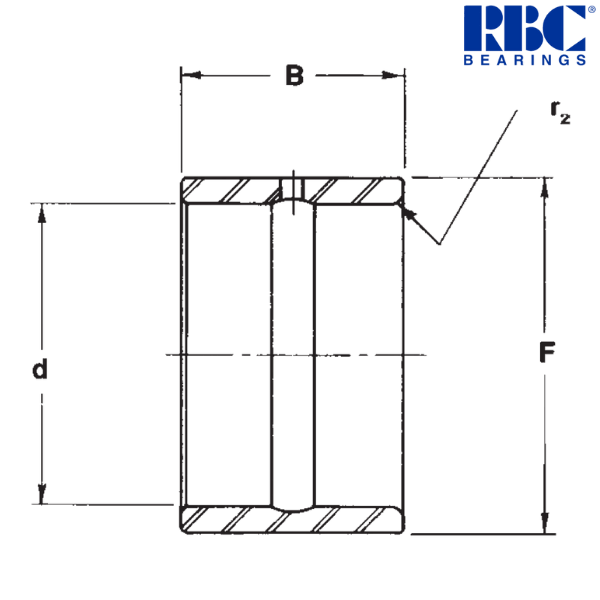

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) * - 3.75 inch
Minimum Inside Diameter (d) - 3.7492 inch
Maximum Inside Diameter (d) - 3.75 inch
Nominal Outside Diameter (F) * - 4.25 inch
Maximum Outside Diameter (F) - 4.2485 inch
Minimum Outside Diameter (F) - 4.2476 inch
Width (B) - 2.01 (+0.000 to -0.005) inch
Maximum Fillet Shaft (r2) - 0.1 inch
Approximate Weight - 1.78 lbs
Maximum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.7495 inch
Minimum Recomended Shaft Diameter (Slip Fit ISO g6) - 3.7487 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 3.7511 inch
Maximum Recomended Shaft Diameter (Press Fit ISO m5) - 3.7505 inch
MS 51962 Suffix ** - (-40)

Principal Dimensions & Load Ratings (Metric) :
Weight - 0.80739 kg

Other salient points to be noted :
* Sorted by outside diameter.
** These inner rings meet Military Standard MS 51962

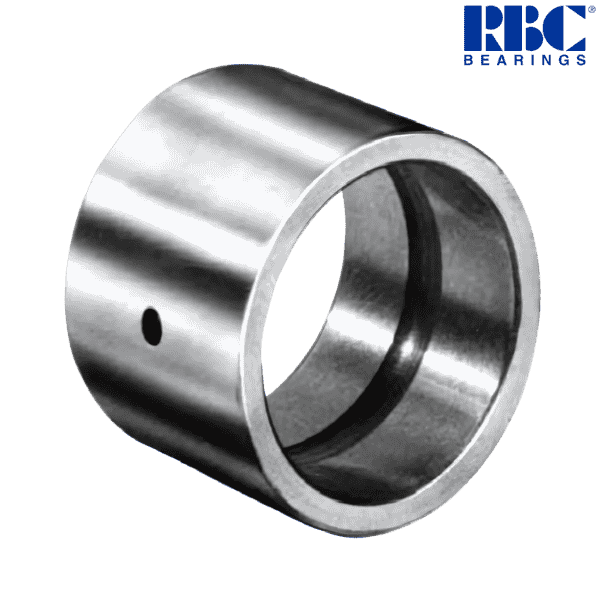

♦ ♦ Images are for representation purposes only
