Description
Brand - TIMKEN
Item Number - JH307749/JH307710 (H307749XR/H307710ER) TIMKEN
Also Known As - JH307749 - JH307710 (H307749XR - H307710ER)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 55
Bore Diameter (d) inch - 2.1654
Outer Diameter (D) mm - 110
Outer Diameter (D) inch - 4.3307
Width (T) mm - 95.4
Width (T) inch - 3.7558
Width (C) mm - 80.815
Width (C) inch - 3.1816
Dynamic Radial Rating (C1) N - 433000
Dynamic Radial Rating (C1) lbf - 97400
Factor (e) - 0.35
Factor (Y1) - 1.95
Factor (Y2) - 2.9
Dynamic Radial Rating (90 million revolutions) (C90) N - 64500
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 14500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 38300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8600
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 112000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 25300
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.69

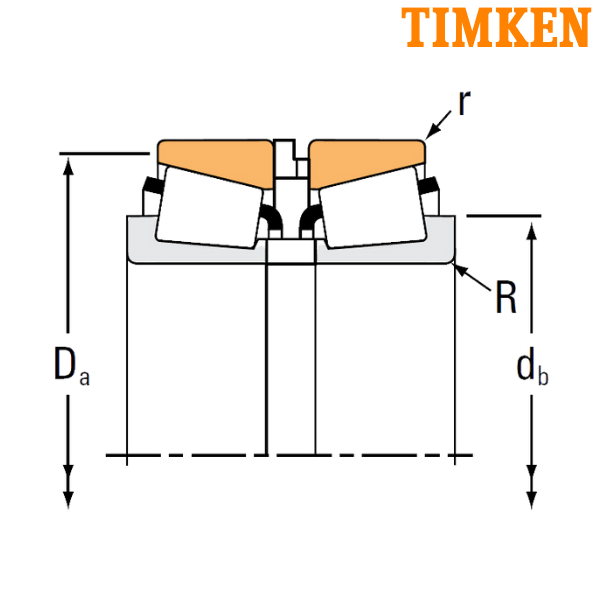

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 71
Backing Shoulder Diameter (db) inch - 2.8
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 104
Backing Shoulder Diameter (Da) inch - 4.09
Weight of the Bearing without Snap Ring (kg) - 3.83
Weight of the Bearing without Snap Ring (lbs) - 8.42
Inner Spacer - H307749XR
Outer Spacer - H307710ER
Snap Ring - K518419R
Inner Part Number - JH307749
Outer Part Number - JH307710
SR - SET-RIGHT Assembly
** Images are for representation purposes only
