Description
Brand - TIMKEN
Item Number - JH415647/JH415610 (H415647XS/H415610ES) TIMKEN
Also Known As - JH415647 - JH415610 (H415647XS - H415610ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 75
Bore Diameter (d) inch - 2.9528
Outer Diameter (D) mm - 145
Outer Diameter (D) inch - 5.7087
Width (T) mm - 112
Width (T) inch - 4.4094
Width (C) mm - 93.4
Width (C) inch - 3.6771
Dynamic Radial Rating (C1) N - 604000
Dynamic Radial Rating (C1) lbf - 136000
Factor (e) - 0.36
Factor (Y1) - 1.86
Factor (Y2) - 2.78
Dynamic Radial Rating (90 million revolutions) (C90) N - 89900
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 20200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 55700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 12500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 157000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 35200
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.61

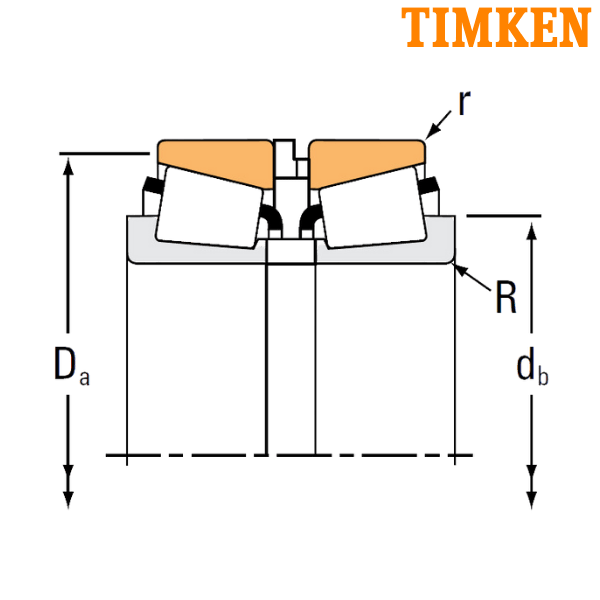

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 94
Backing Shoulder Diameter (db) inch - 3.7
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 139
Backing Shoulder Diameter (Da) inch - 5.47
Weight of the Bearing without Snap Ring (kg) - 8.02
Weight of the Bearing without Snap Ring (lbs) - 17.7
Inner Spacer - H415647XS
Outer Spacer - H415610ES
Snap Ring - K524653R
Inner Part Number - JH415647
Outer Part Number - JH415610
SR - SET-RIGHT Assembly
** Images are for representation purposes only
