JHA15CL0 RBC

Brand - RBC
Item Number - JHA15CL0*RBC
Category - Sealed (Molded) Radial Contact, C-Type Thin Section Ball Bearings

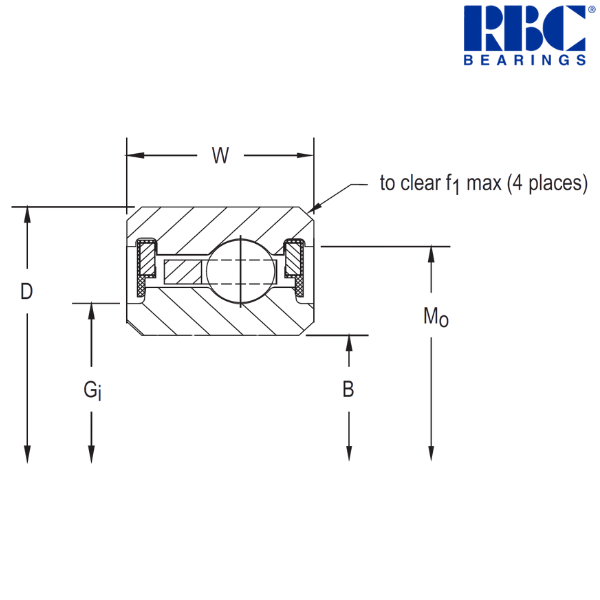

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1.5 inch
Outside Diameter (D) - 1.875 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 1.593 inch
Groove Diameter (Mo) - 1.76 inch
Housing Fillet (f1) - 0.015 inch
Ball Diameter - 0.09375 inch
Ball Quantity - 30 pcs.
Approximate Weight - 0.052 lbs
Radial Static Load - 400 lbf
Radial Dynamic Load - 350 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 38.1 mm
Outside Diameter (D) - 47.625 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 40.462 mm
Groove Diameter (Mo) - 44.704 mm
Housing Fillet (f1) - 0.38 mm
Approximate Weight - 0.024 kg
Radial Static Load - 1780 N
Radial Dynamic Load - 1560 N

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
HA - Extended Width
C - Radial Ball Contact
L - GFR Nylon
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
