JHA17CL0 RBC

Brand - RBC
Item Number - JHA17CL0*RBC
Category - Sealed (Molded) Radial Contact, C-Type Thin Section Ball Bearings

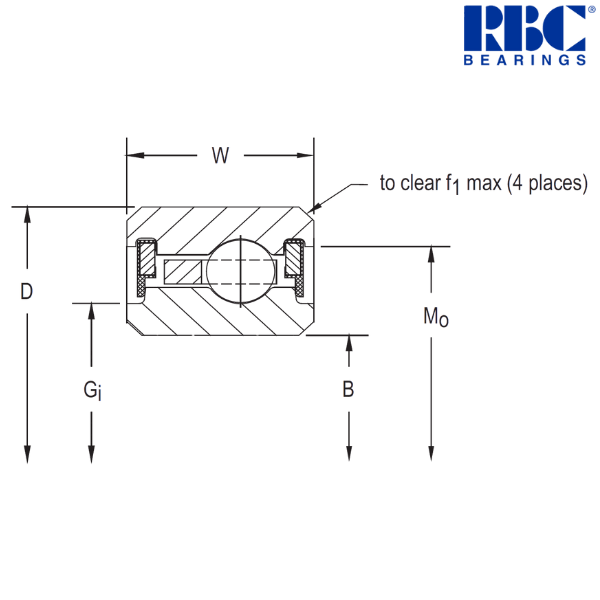

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1.75 inch
Outside Diameter (D) - 2.125 inch
Width (W) - 0.25 inch
Recess Diameter (Gi) - 1.843 inch
Groove Diameter (Mo) - 2.01 inch
Housing Fillet (f1) - 0.015 inch
Ball Diameter - 0.09375 inch
Ball Quantity - 33 pcs.
Approximate Weight - 0.06 lbs
Radial Static Load - 460 lbf
Radial Dynamic Load - 371 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 44.45 mm
Outside Diameter (D) - 53.975 mm
Width (W) - 6.35 mm
Recess Diameter (Gi) - 46.812 mm
Groove Diameter (Mo) - 51.054 mm
Housing Fillet (f1) - 0.38 mm
Approximate Weight - 0.027 kg
Radial Static Load - 2050 N
Radial Dynamic Load - 1650 N

Description of Suffixes and Prefixes :
J - 2 seals - molded rubber
HA - Extended Width
C - Radial Ball Contact
L - GFR Nylon
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
• Sealed
