Description
Brand - TIMKEN
Item Number - JHM318448/JHM318410 (HM318448XS/HM318410ES) TIMKEN
Also Known As - JHM318448 - JHM318410 (HM318448XS - HM318410ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 90
Bore Diameter (d) inch - 3.5433
Outer Diameter (D) mm - 155
Outer Diameter (D) inch - 6.1024
Width (T) mm - 98
Width (T) inch - 3.8583
Width (C) mm - 80.314
Width (C) inch - 3.1619
Dynamic Radial Rating (C1) N - 683000
Dynamic Radial Rating (C1) lbf - 153000
Factor (e) - 0.34
Factor (Y1) - 1.98
Factor (Y2) - 2.95
Dynamic Radial Rating (90 million revolutions) (C90) N - 102000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 22900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 59400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 13300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 177000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 39800
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.71
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12

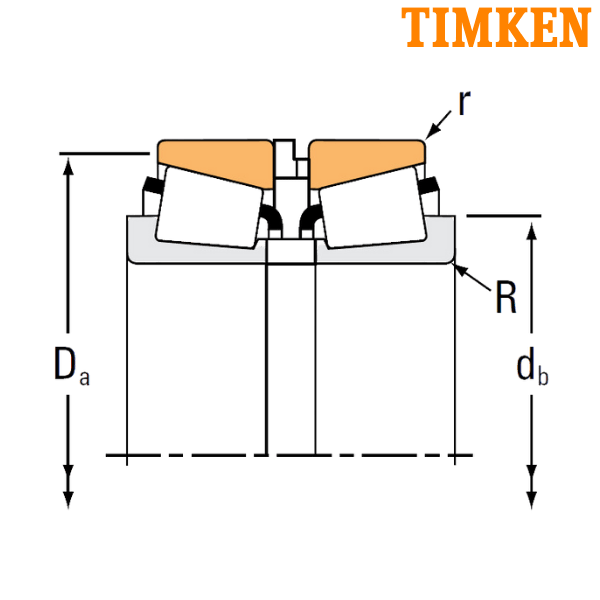

Backing Shoulder Diameter (db) mm - 106
Backing Shoulder Diameter (db) inch - 4.17
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 148
Backing Shoulder Diameter (Da) inch - 5.83
Weight of the Bearing without Snap Ring (kg) - 6.97
Weight of the Bearing without Snap Ring (lbs) - 15.33
Inner Spacer - HM318448XS
Outer Spacer - HM318410ES
Snap Ring - K516800R
Inner Part Number - JHM318448
Outer Part Number - JHM318410
SR - SET-RIGHT Assembly
** Images are for representation purposes only
