Description
Brand - TIMKEN
Item Number - JHM720249/JHM720210 (JXH10010A/HM720210ES) TIMKEN
Also Known As - JHM720249 - JHM720210 (JXH10010A - HM720210ES)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 100
Bore Diameter (d) inch - 3.937
Outer Diameter (D) mm - 160
Outer Diameter (D) inch - 6.2992
Width (T) mm - 90
Width (T) inch - 3.5433
Width (C) mm - 71.412
Width (C) inch - 2.8115
Dynamic Radial Rating (C1) N - 576000
Dynamic Radial Rating (C1) lbf - 130000
Factor (e) - 0.47
Factor (Y1) - 1.43
Factor (Y2) - 2.14
Dynamic Radial Rating (90 million revolutions) (C90) N - 85800
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 19300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 69100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 15500
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 149000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 33600
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24

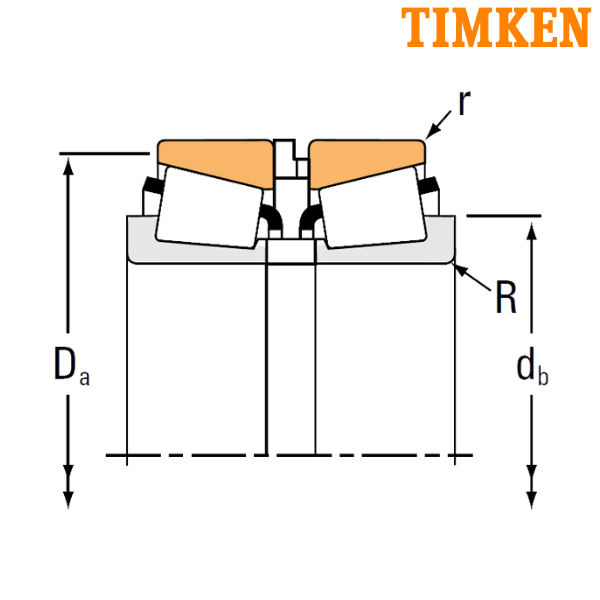

Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 117
Backing Shoulder Diameter (db) inch - 4.61
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 153.9
Backing Shoulder Diameter (Da) inch - 6.06
Weight of the Bearing without Snap Ring (kg) - 6.31
Weight of the Bearing without Snap Ring (lbs) - 13.91
Inner Spacer - JXH10010A
Outer Spacer - HM720210ES
Snap Ring - K525362R
Inner Part Number - JHM720249
Outer Part Number - JHM720210
SR - SET-RIGHT Assembly
